    2205 Duplex Stainless Steel Drilling Mud Centrifuge , High Speed Dewatering Centrifuge

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRLW450N-2
    Certification : API Certificate, ISO9001 Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 200 Sets / Month
    Delivery Time : Within 25 days after deposit
    • Product Details
    • Company Profile

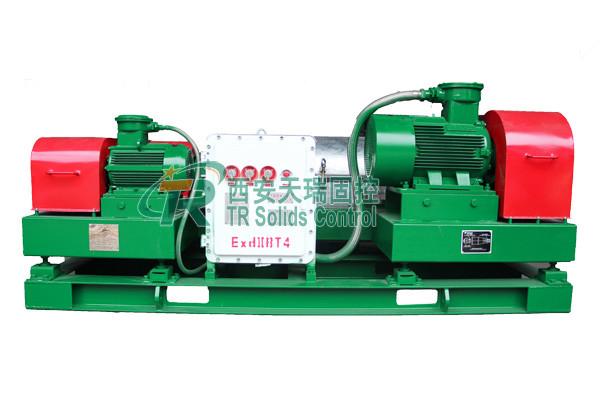

    2205 Duplex Stainless Steel Drilling Mud Centrifuge , High Speed Dewatering Centrifuge

    2205 Duplex Stainless Steel Drilling Mud Centrifuge , High Speed Dewatering Centrifuge


    Product Introduction

    TRLW series decanter centrifuge is the fourth phase solids control equipment, also called Horizontal Spiral Centrifuge, Horizontal Decanter Centrifuge, and Screw Decanter Centrifuge. According to different rotating speed, it can be defined as middle speed, high speed and high speed VFD centrifuge. It is mainly use for recycling the barite, removing the fine solid particles sized in 2-7μm, controlling the density and viscosity of drilling fluid to keep the drilling fluid performance.

    TR Solids Control is a lead and professional manufacturer of decanter centrifuge. TR decanter centrifuge is high in recovery rate, effective in solids control and remarkable in the reduction of cost spent on drilling mud resupplying and management.

    Main Advantages of TRLW Series Decanter Centrifuge

    1. Straight and cone section of the drum are made from 2205 duplex stainless steel material, adopt centrifugal casting process.
    2. Remaining components of the drum assembly are made from SS316L.
    3. Using imported SKF and NSK bearings to improve equipment stability and bearing life.
    4. Diversion port of screw pusher and slag-drip opening of the drum are protected by replaceable wear-resistant alloy sleeve, delaying the service life and maintenance cycle.
    5. Frequency control facilitates customers to adjust speed at any time, meeting different working conditions.
    6. Drum assembly is protected with demountable support frame in transit, preventing damage to bearing.
    7. Screw carrier adopts YG6 wear-resistant alloy sheet protection. With long life, easy maintenance and replacement.
    8. Schneider or Siemens electrical components. Current overload & mechanical limit switch dual protections.

    Technical Data of High Speed Decanting Centrifuge

    ModelTRGLW355N-1TRGLW450N-2TRGLW450N-3TRGLW550N-1
    Bowl Diameter355mm (14inch)450mm (17.7inch)450mm (17.7inch)550mm (22inch)
    Bowl Length1250mm(49.2inch)1250mm(49.2inch)1600(64inch)1800mm(49.2inch)
    Max Capacity40m3/h60m3/h70m3/h90m3/h
    Max Speed3800r/min3200r/min3200r/min3000r/min
    Rotary Speed3200r/min3000r/min2800r/min2600r/min
    G-Force3018257825782711
    Separation2~5μm2~5μm2~5μm2~5μm
    Main Drive30kW-4p30kW-4p45kW-4p55kW-4p
    Back Drive7.5kW-4p7.5kW-4p15kW-4p22kW-4p
    Weight2950kg3200kg4500kg5800kg
    Dimension2850X1860X12502600X1860X12502950X1860X12503250X1960X1350

    (Note: Rotary speed can be adjustable as per user's requirements)



    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
