    HDD Trenchless Drilling Fluids Screw Type Pump 3740×420×785mm Dimension

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRG80A-220
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 100 Sets Per Month
    Delivery Time : Within 15 days after deposit
    • Product Details
    • Company Profile

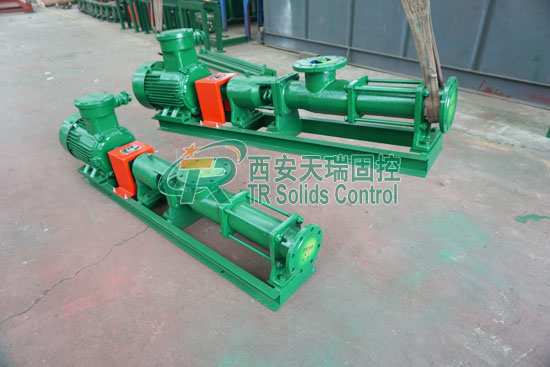

    HDD Trenchless Drilling Fluids Screw Type Pump 3740×420×785mm Dimension

    HDD Trenchless Drilling Fluids TRG80A-220 Screw Pump , Available in Stock


    Introduction


    Screw pump is an ideal pump for feeding drilling fluids to decanter centrifuge. Different from other sewage pump or trash pump, it could transfer mud to centrifuge without shearing and stirring drilling fluids. Besides that, it is used to transport drilling waste management and cuttings of wet mud.


    The main parts of screw pump are screw shaft and screw shaft bushing. Because of special geometry shape of the two parts, the pump forms pressurize capacity separately, and the waste fluids flow along with the shaft. Slow inner flow speed, remaining capacity and steady pressure make it won’t generate vortex and agitating. Usually shaft of the screw pump is made from stainless steel. TRG screw pump is available for complete stainless steel body.


    Application


    Screw Pump is widely used in trenchless HDD, city bored piling, oil & gas drilling, tunnelling construction, Coal Bed Gas Solids Control System, Drilling Waste Management, Oil Mud Seperation, Oil Sludge Dewatering Systems, Water Drilling, environment protection, shipbuilding industry, brewing Industry etc.


    Features of TRGSeries Shear Pump


    1. Shaft of the pump is made from stainless steel.
    2. Less accessories, compact structure and easy maintenance.
    3. Rotor and stator are vulnerable parts. They are easy to replace.

    4. Long operational life with reliable performance.

    5. Stable flow rate and pressure. No pulse.

    6. High suction height, low noise. No leakage, no temperature rise when conveying liquid.

    7. Large working speed range. Flow and pressure can be adjustable.

    8. Wide application range. Can convery all flowable media.


    Technical Data of TRG Series Screw Pump


    ModelFlow RatePressurePower

    Inlet

    (Inch)

    Outlet

    (Inch)

    Ex Standard

    Weight

    (Kg)

    Dimension
    TRG10A-04010m³/h0.3Mpa4kw33ExdIIBt4/IECEX/A-TEX2452245×320×550mm
    TRG20A-05520m³/h5.5kw333232450×340×562mm
    TRG30A-07530m³/h7.5kw443862761×370×600mm
    TRG40A-11040m³/h11kw554543270×370×665mm
    TRG50A-11050m³/h11kw556083790×400×782mm
    TRG60A-15060m³/h15kw556493322×550×740mm
    TRG70A-22070m³/h22kw668753740×420×785mm
    TRG80A-22080m³/h22kw668753740×420×785mm
    TRG90A-22090m³/h22kw668753740×420×785mm



    Competitive Advantages

    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

    Company Tenet

    Customer's satisfaction is the highest pursuit of TR Solids Control.
