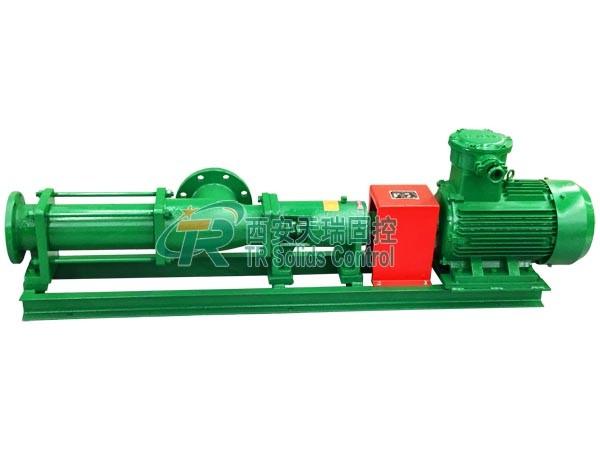

    Oil and Gas Drilling Screw Type Pump 20 Cubic Meter Per Hour Flow Rate

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRG20A-055
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 100 Sets Per Month
    Delivery Time : Within 15 days after deposit
    • Product Details
    • Company Profile

    Oil and Gas Drilling Screw Type Pump 20 Cubic Meter Per Hour Flow Rate

    API Spec Solids Control Screw Pump in Stock , Used in Oil and Gas Drilling


    Introduction


    TRG series screw pump manufactured by TR Solids Control is a new model pump based on the working principle of return mesh volume. It is a type of volumetric rotary pump. The main working elements are eccentric screw (rotor) and fixed bushing (stator). It sucks and discharges liquid through the volume change of seal chamber formed by screw and bushing.


    Our screw pump is characterized by smooth flow rate, small pressure pulsation, good self-priming ability, low noise, high efficiency, long service life, and reliable operation. Its outstanding advantage is that when conveying medium it does not form eddy currents and is not sensitive to the viscosity of medium. Therefore, our screw pump is widely used in drilling waste management currently.


    Application


    Our screw Pump is widely used in city bored piling, oil & gas drilling, tunnelling construction, trenchless HDD, environment protection, shipbuilding industry, brewing Industry, Coal Bed Gas Solids Control System, Drilling Waste Management, Oil Mud Seperation, Oil Sludge Dewatering Systems, Water Drilling etc.


    Features of TRGSeries Shear Pump


    1. Stable flow rate and pressure. No pulse.
    2. Large working speed range. Flow and pressure can be adjustable.
    3. High suction height, low noise. No leakage, no temperature rise when conveying liquid.

    4. Long operational life with reliable performance.

    5. Rotor and stator are vulnerable parts. They are easy to replace.

    6. Less accessories, compact structure and easy maintenance.

    7. Wide application range. Can convery all flowable media.


    Technical Data of TRG Series Screw Pump


    ModelFlow RatePressurePower

    Inlet

    (Inch)

    Outlet

    (Inch)

    Ex Standard

    Weight

    (Kg)

    Dimension
    TRG10A-04010m³/h0.3Mpa4kw33ExdIIBt4/IECEX/A-TEX2452245×320×550mm
    TRG20A-05520m³/h5.5kw333232450×340×562mm
    TRG30A-07530m³/h7.5kw443862761×370×600mm
    TRG40A-11040m³/h11kw554543270×370×665mm
    TRG50A-11050m³/h11kw556083790×400×782mm
    TRG60A-15060m³/h15kw556493322×550×740mm
    TRG70A-22070m³/h22kw668753740×420×785mm
    TRG80A-22080m³/h22kw668753740×420×785mm
    TRG90A-22090m³/h22kw668753740×420×785mm



    Competitive Advantages

    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

    Company Tenet

    Customer's satisfaction is the highest pursuit of TR Solids Control.
