    Green 240m3/H 55KW Mud Mixer Customized For Oilfield Drilling Solids Control

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRSLH150-50
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 30 Sets Per Month
    Delivery Time : 20 days after deposit
    • Product Details
    • Company Profile

    Green 240m3/H 55KW Mud Mixer Customized For Oilfield Drilling Solids Control

    Large Capacity 240m3/h 55KW Jet Mud Mixer For Oilfield Drilling, Mud Mixing Hopper


    Introduction

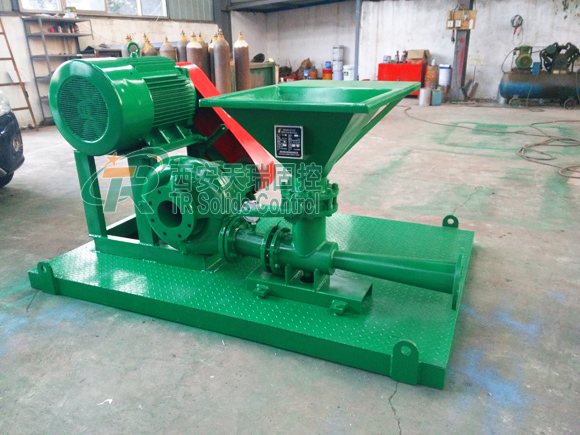

    Jet Mud Mixer is a special equipment to prepare and increase the drilling fluids weight by adding and mixing bentonite, which changes the mud density, viscosity, and dehydration. The effect is more prominent matched with Shear Pump. TRSLH series jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling. The unit includes one sand pump, one jet mixing hopper and one jet mixer that are installed in a base with pipe valves. At the same time, we can make Twin-Jet mud mixer according to client's requirements.


    TRSLH series jet mud mixer can be matched with other drilling solids control system.It is safe and stable and can be moved conveniently. It can enhance dispersion effect of material, improve pressure head of mixed liquid, make the material recycle and mix enough in mud tank.


    Application


    TRSLH series jet mud mixer is widely used in these industries: Drilling Waste Management, Oil and Gas Drilling, Trenchless HDD & Tunnelling, Oil Mud Seperation, Bored Piling, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System.


    Features of TRSLH Series Jet Mud Mixer


    1. Sand pump and jet mixing hopper can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, with good sealing performance.
    2. Jet mud mixer can change the density, viscosity and water loss effectively, and also enhance material dispersion effect, improve the mixed liquid pressure head.
    3. Single jet mud mixer is made up of one sand pump, one jet mixing hopper that are installed in a base with pipe valves. Duplex jet mud mixer is composed of two sand pumps and two jet mixing hoppers.


    Technical Data of TRSLH Series Jet Mud Mixer

    ModelTRSLH150-50TRSLH150-40TRSLH150-30TRSLH100
    Matched PumpTRSB8×6-13J(55kw)TRSB6×5-13J(45kw)TRSB5×4-14J(37kw)TRSB4X3-11J(15kw)
    Capacity240m3/h180m3/h120m3/h60m3/h
    Pressure0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa
    Inlet Diameter150mm150mm150mm100mm
    Nozzle Diameter50mm40mm30mm30mm
    Hopper Size750x750mm750x750mm600x600mm600x600mm
    Burden Speed≤100kg/min≤80kg/min≤60kg/min≤40kg/min
    Weight1600kg1450kg1300kg1100kg
    Dimension2200*1700*1200mm2200*1700*1200mm2000*1650*1100mm2000*1650*1100mm


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

    Company Tenet

    Customer's satisfaction is the highest pursuit of TR Solids Control.
