5.5KW Drilling Mud Agitator with Gearbox for Horizontal Directional Drilling

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 5.5KW Drilling Mud Agitator with Gearbox for Horizontal Directional Drilling from wholesalers

    Buy cheap 5.5KW Drilling Mud Agitator with Gearbox for Horizontal Directional Drilling from wholesalers
    • Buy cheap 5.5KW Drilling Mud Agitator with Gearbox for Horizontal Directional Drilling from wholesalers
    • Buy cheap 5.5KW Drilling Mud Agitator with Gearbox for Horizontal Directional Drilling from wholesalers

    5.5KW Drilling Mud Agitator with Gearbox for Horizontal Directional Drilling

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRJBQ5.5
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 5000 Sets / Month
    Delivery Time : 10 days after receiving deposit
    • Product Details
    • Company Profile

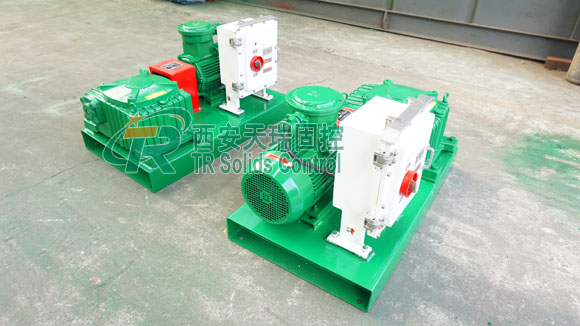

    5.5KW Drilling Mud Agitator with Gearbox for Horizontal Directional Drilling

    5.5KW Drilling Mud Agitator with Gearbox for Horizontal Directional Drilling


    Product Introduction


    Mud agitator is used to mix ratio and prevent to the mud tank in the mud system. TR Solids Control is an exporter of mud agitator. Our factory approvals the ISO9001 certificate, and our mud agitator have API certification. It has a variety of structure, and can meet the needs of different conditions. It is mainly divided into vertical mud agitator and horizontal mud agitator. TRJBQ series mud agitator is used in oil drilling, natural gas drilling, shield construction, city bored piled and other non-excavation site mud mixing.

    TR Solids Control manufactures JBQ series mud agitator with competitive price and top quality. Besides, our shale shaker, mud cleaner, vacuum degasser, centrifugal pump and shaker screens are popular among clients. Welcome your inquiry at any time!


    Main benefits of TRJBQ series mud agitator

    1. The gearbox adopt worm gear. More reliable.
    2. Power available ranging from 3 to 22KW. ​
    3. Small size, compact structure.
    4. Small operating noise, long service life, less wearing parts, and cost-effective.
    5. Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
    6. Good heat exchange performance makes agitator faster cool down.
    7. Spraying Processing: grinding and sandblasting with base coating, middle coating and finish coating.

    Technical Data of TRJBQ Series Mud Agitator


    ModelMotor PowerImpeller SpeedImpeller DiameterImpeller Qty.Explosion-proof StandardWeightDimension
    TRJBQ33kw60/72r/min600mm1

    ExdIIBt4/IECEX/A-TEX

    190kg909×525×527mm
    TRJBQ5.55.5kw600mm1250kg1072×610×588mm
    TRJBQ7.57.5kw650mm2380kg1157×670×607mm
    TRJBQ1111kw800mm2430kg1297×740×692mm
    TRJBQ1515kw950mm2480kg1330×890×747mm
    TRJBQ18.518.5kw1000mm2740kg1510×890×753mm
    TRJBQ2222kw1100mm2780kg1529×890×753mm
    RemarkAbove weight and dimension exclude mud agitator shaft.


    TR Solids Control is a professional manufacturer for soilds control equipments, we have designed lots of high-quality products, and JBQ series Agitator is one of them. To keep both the mud uniformity and the suspension of solids, the mud agitator is used to agitate the mud consecutively and reliably.This agitator agitates the mud to make cuttings, silt and sand pass the solids control system without being precipitated onto the tank bottom. We welcome your inquiry and consulting!


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
