Reliable Oilfield Drilling Mud Tank Agitator with 600mm Diameter Impeller

    Buy cheap Reliable Oilfield Drilling Mud Tank Agitator with 600mm Diameter Impeller from wholesalers

    Buy cheap Reliable Oilfield Drilling Mud Tank Agitator with 600mm Diameter Impeller from wholesalers
    • Buy cheap Reliable Oilfield Drilling Mud Tank Agitator with 600mm Diameter Impeller from wholesalers
    • Buy cheap Reliable Oilfield Drilling Mud Tank Agitator with 600mm Diameter Impeller from wholesalers

    Reliable Oilfield Drilling Mud Tank Agitator with 600mm Diameter Impeller

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRJBQ3
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 5000 Sets / Month
    Delivery Time : 10 days after receiving deposit
    • Product Details
    • Company Profile

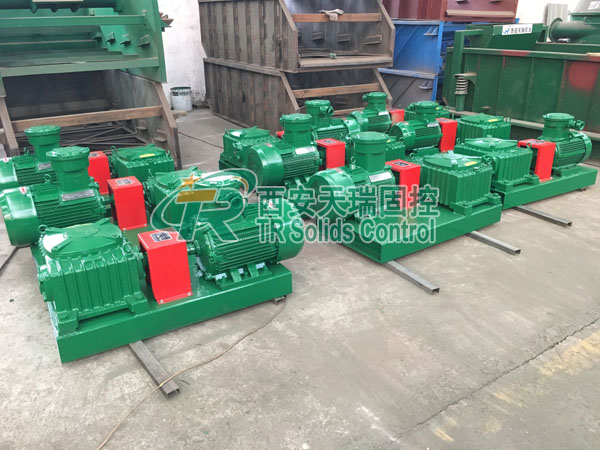

    Reliable Oilfield Drilling Mud Tank Agitator with 600mm Diameter Impeller

    Reliable Oilfield Drilling Mud Tank Agitator with 600mm Diameter Impeller


    Product Introduction


    Drilling mud agitator is mainly used for stirring and mixing of drilling fluids to prevent the solid particles from depositing in its tank circulation system, making the performance of circulating drilling fluid stable, and mixing evenly. In order to keep the uniformity of drilling fluids and to suspend the solid particles, it is necessary to install mud agitator on the circulating tank. Stirring plays a very important role in accelerating the reaction, dissolution and wetting of drilling fluids (eg. bentonite, barite) and chemical additives. Stirring increases the contact area between the phases, and allows the two phases to interact with each other at a greater speed.
    TR Solids Control provides both vertical and horizontal mud agitator. Horizontal agitator is divided into coupling type and direct type agitator. If you need a horizontal agitator, we recommend you use a direct type agitator. Our mud agitator has reasonable price and superior quality.

    Main benefits of TRJBQ series mud agitator

    1. The gearbox use worm gear. More reliable.
    2. Optimized product structure, compact structure.
    3. Running smoothly, less wearing parts, and cost-saving.
    4. Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
    5. Good heat exchange performance makes agitator faster cool down.
    6. Spraying Processing: grinding and sandblasting with base coating, middle coating and finish coating.

    Technical Data of TRJBQ Series Mud Agitator


    ModelMotor PowerImpeller SpeedImpeller DiameterImpeller Qty.Explosion-proof StandardWeightDimension
    TRJBQ33kw60/72r/min600mm1

    ExdIIBt4/IECEX/A-TEX

    190kg909×525×527mm
    TRJBQ5.55.5kw600mm1250kg1072×610×588mm
    TRJBQ7.57.5kw650mm2380kg1157×670×607mm
    TRJBQ1111kw800mm2430kg1297×740×692mm
    TRJBQ1515kw950mm2480kg1330×890×747mm
    TRJBQ18.518.5kw1000mm2740kg1510×890×753mm
    TRJBQ2222kw1100mm2780kg1529×890×753mm
    RemarkAbove weight and dimension exclude mud agitator shaft.


    Our mud agitators have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices. Welcome friends from all over the world to come to visit our factory and guidance our work.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
