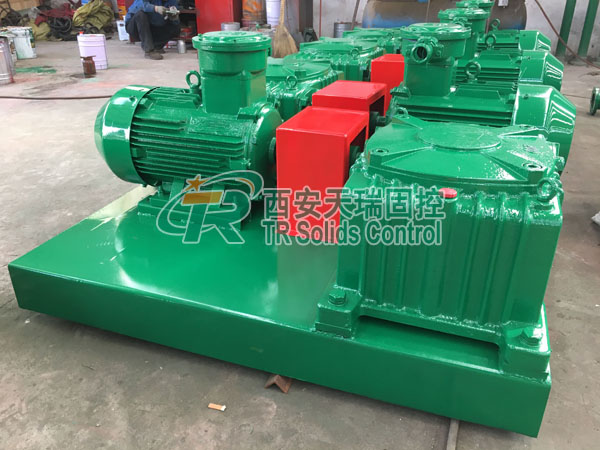

    Oilfield Drilling Mud Agitator , 3KW Power Fluid Mixing Equipment

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRJBQ3
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 5000 Sets / Month
    Delivery Time : 10 days after receiving deposit
    • Product Details
    • Company Profile

    Oilfield Drilling Mud Agitator , 3KW Power Fluid Mixing Equipment

    Oilfield Drilling Mud Agitator , 3KW Power Fluid Mixing Equipment


    Main Introduction


    Mud agitator is an ideal device for stirring, mixing liquid and preventing the solid-phase precipitation in the mixture. TR Solids Control is a professional manufacturer in mud agitator with competitive price and high efficiency. Our agitator is divided into horizontal mud agitator and vertical mud agitator. TR mud agitator has a variety of structure, it has small operating noise, long service life, less wearing parts, and cost-effective.The gearbox adopts worm gear, which makes it more reliable. Motor and gear box will be connected by coupling directly. Agitation speed is more stable. Shaft and blades are customizable. Welcome to contact us for an inquiry at any time.


    TRJBQ series mud agitator is relatively low shear and low energy solids control equipment, so it’s easy to operate and inexpensive to maintain. This will ensure that mud additives are homogeneously mixed to prevent dead spots. Agitators will keep the active mud system flowing even when the pumps are disengaged.


    Main advantages of TRJBQ series mud agitator

    1. More reliable worm gear.
    2. Compact structure, small size.
    3. Adaptable for different application.
    4. Power available ranging from 3 to 22KW.
    5. Running smoothly, small operating noise, long usage life, less wearing parts, and ecomomical.
    6. Motor and gear box connected by coupling directly. Agitation speed is more stable.
    7. Good heat exchange performance makes agitator faster cool down.

    Technical Data of TRJBQ Series Mud Agitator


    ModelMotor PowerImpeller SpeedImpeller DiameterImpeller Qty.Explosion-proof StandardWeightDimension
    TRJBQ33kw60/72r/min600mm1

    ExdIIBt4/IECEX/A-TEX

    190kg909×525×527mm
    TRJBQ5.55.5kw600mm1250kg1072×610×588mm
    TRJBQ7.57.5kw650mm2380kg1157×670×607mm
    TRJBQ1111kw800mm2430kg1297×740×692mm
    TRJBQ1515kw950mm2480kg1330×890×747mm
    TRJBQ18.518.5kw1000mm2740kg1510×890×753mm
    TRJBQ2222kw1100mm2780kg1529×890×753mm
    RemarkAbove weight and dimension exclude mud agitator shaft.


    TRJBQ series mud agitator is relatively low shear and low energy solids control equipment, so it’s easy to operate and inexpensive to maintain. This will ensure that mud additives are homogeneously mixed to prevent dead spots. Agitators will keep the active mud system flowing even when the pumps are disengaged. TR Solids Control is a professional manufacturer for soilds control equipments, we have designed lots of high-quality products, and JBQ series Agitator is one of them. To keep both the mud uniformity and the suspension of solids, the mud agitator is used to agitate the mud consecutively and reliably.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
