    Heavy Anti - Corrosion Paint Mud Agitator Mud Circulating System Use

    Heavy Anti - Corrosion Paint Mud Agitator Mud Circulating System Use


    Product Introduction

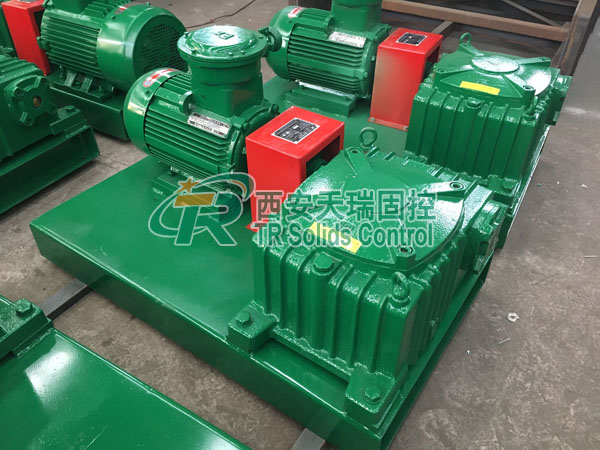

    TRJBQ series mud agitator is part of the drilling fluids solids control equipment, which is mainly used to agitate and mix the drilling mud to prevent solids particles from depositing in the circulating tank and to stabilize the performance of drilling fluids. It is composed of explosion-proof motor, speed reducer, motor base and blade. The motor and speed reducer, speed reducer and impeller shaft are connected by steel coupling. The impeller is welded with four blades.


    TR can manufacture mud agitator with worm and wheel gearbox, also the agitator with helical bevel gear box. The high performance, efficiency, and quality is appreciated by many clients. Helical bevel geared agitator will transfer more efficient to shaft save more energy than common worm and wheel gearbox. No matter for horizontal or vertical agitator, there is helical bevel gearbox available.


    Main benefits and features of TRJBQ series mud agitator

    1. More reliable worm gear.
    2. Optimized product structure, small size.
    3. Power available ranging from 3 to 22KW. ​
    4. Running smoothly, small operating noise, long usage life, less wearing parts, and ecomomical.
    5. Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
    6. Good heat exchange performance makes agitator faster cool down.

    Technical Data of TRJBQ Series Mud Agitator


    ModelMotor PowerImpeller SpeedImpeller DiameterImpeller Qty.Explosion-proof StandardWeightDimension
    TRJBQ33kw60/72r/min600mm1

    ExdIIBt4/IECEX/A-TEX

    190kg909×525×527mm
    TRJBQ5.55.5kw600mm1250kg1072×610×588mm
    TRJBQ7.57.5kw650mm2380kg1157×670×607mm
    TRJBQ1111kw800mm2430kg1297×740×692mm
    TRJBQ1515kw950mm2480kg1330×890×747mm
    TRJBQ18.518.5kw1000mm2740kg1510×890×753mm
    TRJBQ2222kw1100mm2780kg1529×890×753mm
    RemarkAbove weight and dimension exclude mud agitator shaft.


    TRJBQ series mud agitator is currently used in oil & gas drilling, Drilling Waste Management, tunneling construction, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, trenchless HDD, micro-tunneling, mining, Oil Mud Seperation, environment protection, Water Drilling etc. Our mud agitators have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). TR Solids Control has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.


    Competitive Advantages
    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
