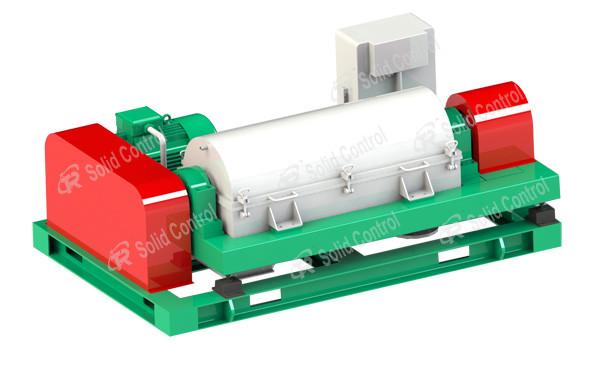

    Oilfield Horizontal Decanter Centrifuge with Personalized Rotary Speed

    Oilfield Horizontal Decanter Centrifuge with Personalized Rotary Speed


    Product Introduction


    Decanter centrifuge is the fourth solid control equipment in handling drilling fluid. It’s used to separate suspension liquid by adopting principle of centrifugal sedimentation. According to different rotary speed, it can be divided into middle speed centrifuge, high speed centrifuge and high speed frequency centrifuge. It mainly separates 2-7μm solid particles in drilling fluid. TR decanter centrifuge is widely used in oil & gas drilling, drilling waster management and sewage treatment.


    TR Solids Control is a lead and professional manufacturer of decanter centrifuge. TR decanter centrifuge is high in recovery rate, effective in solids control and remarkable in the reduction of cost spent on drilling mud resupplying and management.


    Features of TRLW Series Decanter Centrifuge

    1. Bearing :Germany FAG or Sweden SKF.
    2. Electrical Component: Siemens and Schneider.
    3. Diversion port of screw pusher and slag-drip opening of the drum are protected by replaceable wear-resistant alloy sleeve, delaying the service life and maintenance cycle.
    4. Drum assembly is protected with demountable support frame in transit, preventing damage to bearing.
    5. Frequency control facilitates customers to adjust speed at any time, meeting different working conditions.

    Technical Data of High Speed Decanting Centrifuge


    ModelTRGLW355N-1TRGLW450N-2TRGLW450N-3TRGLW550N-1
    Bowl Diameter355mm (14inch)450mm (17.7inch)450mm (17.7inch)550mm (22inch)
    Bowl Length1250mm(49.2inch)1250mm(49.2inch)1600(64inch)1800mm(49.2inch)
    Max Capacity40m3/h60m3/h70m3/h90m3/h
    Max Speed3800r/min3200r/min3200r/min3000r/min
    Rotary Speed3200r/min3000r/min2800r/min2600r/min
    G-Force3018257825782711
    Separation2~5μm2~5μm2~5μm2~5μm
    Main Drive30kW-4p30kW-4p45kW-4p55kW-4p
    Back Drive7.5kW-4p7.5kW-4p15kW-4p22kW-4p
    Weight2950kg3200kg4500kg5800kg
    Dimension2850X1860X12502600X1860X12502950X1860X12503250X1960X1350

    (Note: Rotary speed can be adjustable as per user's requirements)
