    Bored Piling Industry Desander And Desilter Pure Polyurethane Cyclone Material

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRCS200-1S
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 200 Pcs / Month
    Delivery Time : Within 20 days after deposit
    • Product Details
    • Company Profile

    Bored Piling Industry Desander And Desilter Pure Polyurethane Cyclone Material

    Bored Piling Industry Desander And Desilter Pure Polyurethane Cyclone Material


    Introduction

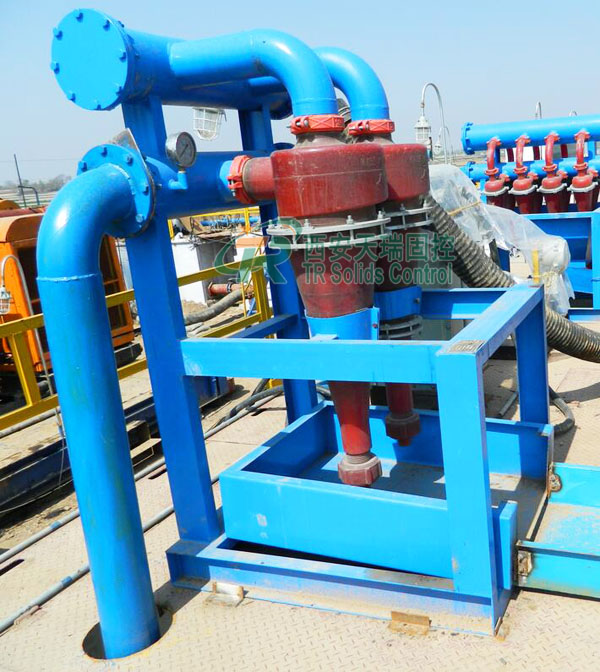

    Mud desander is the second phase cleaning for a whole solids control system, It sits on mud tank for separate drilling cuttings 47-76 micron and above by centrifugal force. The untreated mud will feed into desander cone at the horizontal inlet at pressure, the pressure and weight will help solids particles moving beside cone wall and drop down, fluids particles will be press on top and over flow away through pipeline. There can be a shaker to collect solids particles from desander nozzle or drop onto a hoper directly.

    Mud desander has already been one of TR’s main products that ever requested very often from clients. TRCS series desander manufactured by TR Solids Control overcomes the shortcomings of the original desanding process. It consists of inlet pipe, desanding hydrocyclone, underflow shaker and discharge port. TR’s desander is with advantages of high quality hydrocyclones, large capacity, small noise, strong separation ability, long service time and easy maintenance. They are getting more and more attention from clients.


    Main Advantages of TRCS Mud Desander

    1. Internation brand vibrating motor, Martin or Oli Motor.
    2. Flexible fast connection are available for user assembly.
    3. Compact design with small footprint.
    4. Pure polyurethane or high-chromium for hydrocyclones.
    5. Clamp connection for hydrocyclones installation, easy to dismantle and replace.
    6. Replaceable hydrocyclones.
    7. Flexible options for 1, 2 or 3 pieces of 10" or 12" cones for different capacities.

    Technical data of TRCS series desander


    ModelTRCS200-1S/2STRCS250-1S/2STRCS250-3STRCS300-1S/2S
    Capacity60m3/120m3/h100m3/200m3/h300m3/h120m3/240m3/h
    Cyclone Specs8”10”10”12”
    Cyclone Qty1nos/2nos1nos/2nos3nos1nos/2nos
    Working Pressure0.25-0.4Mpa
    Inlet SizeDN125mmDN150mmDN150mmDN150mm
    Outlet SizeDN150mmDN200mmDN200mmDN200mm
    Separation Point45μm -75μm
    Bottom ShakerTRTS60TRTS60TRZS752TRZS752
    Dimension1510*1160*2000mm1510*1360*2250mm1835*1230*1810mm1835*1230*1810mm
    Weight570kg/620kg670kg/760kg1300kg1380kg
    RemarkAll desander could be customized without bottom shaker.


    Product Application


    Our Mud Desander is currently used in trenchless HDD, oil & gas drilling, Drilling Waste Management, city bored piling, tunneling construction, mining, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Oil Sludge Dewatering Systems, Water Drilling etc.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
