    Well Head Device for Gas Production Suitable for Land and Offshore Application

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : KQ65/21 KQ65/35 KQ80-65/35 KQ65/70 KQ78-65/70 KQ65/105 KQ78-65/105
    Certification : API 6A
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 sets per month
    Delivery Time : Within 10 days after deposit
    • Product Details
    • Company Profile

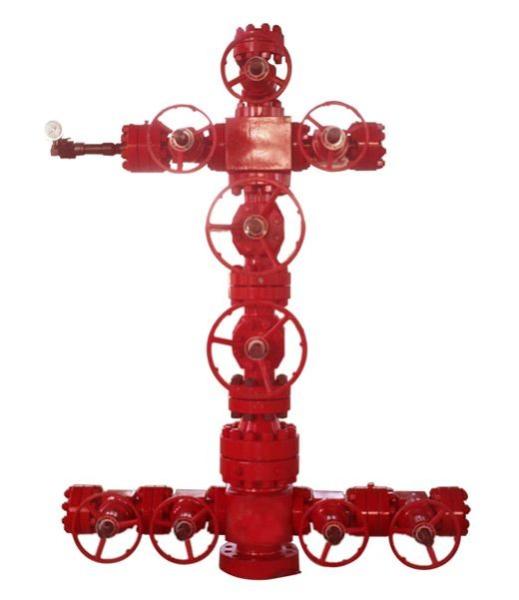

    Well Head Device for Gas Production Suitable for Land and Offshore Application

    Well head device for gas production

    We can supply the wellheads and Christmas trees suitable for land and offshore applications to explore, develop and produce oil. We design, manufacture, test and control these products in accordance with API 6A, latest edition and also hold a Certificate of Authority to use the API monogram for API 6A products. The main pressure-containing parts of these products are made from forgings or specially smelted low alloy steel (stainless steel) casings for high bearing strength. Wellheads manufactured by our company are available in pressure rating up tof105MPa, load rating up to 500 tons, material classes from AA through FF, temperature classes from L through V, product specification levels from 1 through 4 and PR1 & 2, and also meet NACE Standard MR0175.


    The wellheads, Christmas trees and auxiliary equipments supplied by TR Solids Control are available in many different kinds of configurations, meeting requirements of all kinds of bore frames and casing programs and providing service in different working conditions. They are also available upon customer request.

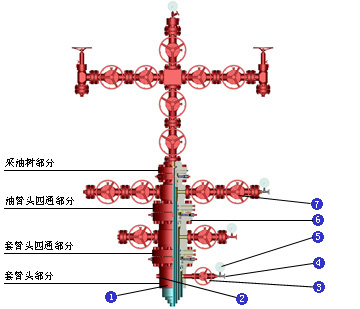

    Parts List:


    ItemComponentQtyMaterialRemark
    1Pressure Gauge4
    2Needle Valve4
    3Bull Plug14130
    4Casing Head Housing14130
    5Threaded Gate Valve1
    6Casing Spool1
    7Flanged Gate Valve11

    Technical Parameters for X-mas Tree Assembly:


    ParameterType
    KQ65/21KQ65/35KQ80-65/35KQ65/70KQ78-65/70KQ65/105KQ78-65/105
    Rated Pressure3000psi5000psi5000psi10000psi10000psi15000psi15000psi
    Nominal SizeMain2-9/16″2-9/16″3-1/8″2-9/16″3-1/16″2-9/16″3-1/16″
    Side2-9/16″2-9/16″2-9/16″2-9/16″2-9/16″2-9/16″2-9/16″
    Working Temperature-46°C ~ 121°C ( L . U )
    Available MediumCrude Gas
    PSLPSL1 ~ 4
    Material ClassAA ~ HH
    PRPR1 ~ 2
    Connection TypeClamp,FlangedFlanged

    Casing Head Assembly



    The casing head is a kind of part of connecting casings and wellheads. It is used to support the weight of technical casing and intermediate casing and seal the annular space between the casings, which provides a transition joint for the installation of the tubing head, Christmas tree and other wellheads. The two-side-outlet design allows the casing head to supply cement, monitor and control well's sinking, and inject balance liquids etc.


    The casing head produced by our company has a standard configuration, which accepts the casing hangers produced by our company. These casing hangers can be available in different sizes according to the casing procedure and the change of well head condition. The top flange of the casing head is in accordance with the requirements of API type 6B or BX flange.


    The options open to the casing head are as follows:


    • If required, it can be designed in integral or split structure.
    • The connecting type of casing head and surface casing is weld, thread and slip type. The thread type is available as API CSG female threaded, API BTC female threaded.
    • Matched casing hanger structural type: slip, thread(mandrel).
    • The connecting type of side outlet includes thread, bolted flange and flange. The studded outlets contain 1 1/2" valve removal threads.
    • In the bottom of casing head and casing spool sets casing secondary seal mechanism and sealing test port.

    Parts List:

    Item
    Component
    QtyMaterial

    Remark

    1Lockdown Screw124130
    2Packing Nut125140
    3Packing Washer24410
    4Packing60PTFE
    5Slip Hanger Assy1
    6Casing Head Housing14130

    ItemComponentQtyMaterialRemark
    1Slip Hanger Assy1
    2Lockdown Screw Assy12
    3BT Seal Ring1NBR
    4Casing Spool14130
    5Grease Fitting4

    ItemComponentQtyMaterialRemark
    1Socket Head Screw16
    2Upper Lock Ring14140
    3Seal Ring1NBR
    4Lower Lock Ring14140
    5Positioning Ring14140
    6Slip14130
