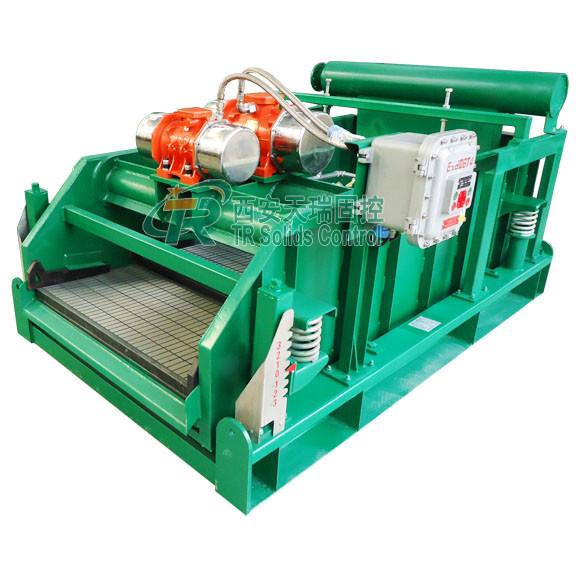

    Adjustable Linear Motion Shaker / Drilling Shale Shaker For Oil And Gas Industry

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRPS703
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 3000 Sets / Month
    Delivery Time : Within 10 days after deposit
    • Product Details
    • Company Profile

    Adjustable Linear Motion Shaker / Drilling Shale Shaker For Oil And Gas Industry

    API Standard High Quality Mud System Shale Shaker / Oilfield Shale Shaker


    Product Introduction


    Mud shale shaker was originally mainly used to remove large solid particles in drilling mud, thereby ensuring the normal use of subsequent mud purification and separation equipment. At present, shale shaker has been given a new mission, namely as a basic equipment in drilling waste management. Also, it’s used as a primary separation equipment in sludge treatment system.


    TR Solids Control can design both double shakers and triplicate shale shaker according to clients’ special demands, and we also supply relevant connecting manifold. Meanwhile, our shaker can be used as underflowvibrating screen of mud cleaner. TR mud shale shaker has advantages of high vibration intensity, large screening area, adjustable screen angle, compact structure, high performance and cost-effective. We are a professional designer and manufacturer in mud shale shaker.


    Main features of our mud shale shaker

    • Higher processing capacity.
    • Shale shaker feeder can be weir feeder or box feeder.
    • Hi-speed conveyance of cuttings.
    • Able to process heavier solids loads.
    • AWD device is adjustable from -1°~5°.
    • Enhances cuttings processing volume.
    • Single side shale shaker screens tension system to easily change the screens.
    • G-forces linear motion up to 7.1 G (adjustable depending on the situation).

    Technical Parameters of TR Shale Shaker


    (Model)TRPS703TRPS585-4TRZS703TRZS585
    Vibration MotionBalanced Elliptical MotionLinear Motion
    Treatment Capacity130m³/h140m³/h120m³/h130m³/h
    Motor Power1.94+1.0kw1.94+1.0kw1.5KW×21.72KW×2
    Screen Specs.(700×1250mm)×3(585×1165mm)×4(700×1250mm)×3(585×1165mm)×4
    Screen Area2.6m²2.7m²2.6m²2.7m²
    Vibration Strength≤7.1G≤7.1G≤7.1G≤7.1G
    Double Amplitude7mm7mm6mm6mm
    Deck Adjustment-1°~+5°-1°~+5°-1°~+5°-1°~+5°
    Ex StandardExdIIBt4 / IECEX / A-TEX
    Weight1630kg1618kg1620kg1600kg
    Dimension2770×1785×1690mm2966×1600×1280mm2770×1785×1690mm2966×1600×1280mm
    RemarkAbove data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.

    7.1G Max Vibration Strength Shale Shaker , Oilfield Drilling Fluid Equipment


    Main Application


    TR drilling shale shaker is widely used in oil & gas drilling, Drilling Waste Management, city bored piling, tunneling construction, trenchless HDD, micro-tunneling, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, mining, Coal Bed Gas Solids Control System, Water Drilling etc.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.

    http://www.trsolidscontrol.com/
