    ISO Standard Centrifugal Mud Pump Spare Parts 1968*650*1017mm 1096kg

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : Mission Centrifugal Pump
    Certification : API,ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000PCS/Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    ISO Standard Centrifugal Mud Pump Spare Parts 1968*650*1017mm 1096kg

    ISO Standard Centrifugal Mud Pump Spare Parts 1968*650*1017mm 1096kg


    Product Introduction


    Centrifugal pump is ideal corollary equipment to provide power for desander, desilter and jet mud mixer. It also can fill mud pump and replenish wellhead in drilling process. Most of its parts can be exchangeable. It has advantages of reliable operation, easy maintenance, little shaft seal leakage, and long service life.


    Centrifugal Pump is used for transporting drilling mud. It can be used as feeding pump for desander, desilter, or as mixing pump for jet mud mixer. Also sand pump can be used as trip pump and supercharging pump for rig mud pump. Our centrifugal sand pump is mainly supplied to solids control circulating system of oilfiel drill rig,and be used to offer drilling fluid with certain volume and pressure to desander,desilter or mixer.It is especially suitable for the 2500~4000m drilling rig.


    Spare Parts of Mission Centrifugal Pump


    ItemDescriptionP/NQtyMaterial
    1*Pump shellSee below table1Hard Iron
    1ASeal washer for pump shell10399-46-11Vellumoid
    1BTightening nut for pump shell 3/43932-6112Stl
    1CTightening nut for pump shell 3/4×853862-7612Stl
    1DSquare head plug 3/88505-04-011Stl
    1ESquare head plug 1/28505-04-011Iron
    2*ImpellerSee below table1Iron
    2AO-ring 46.2×1.819110-721Viton
    2BLock washer for impeller1Stl
    2CLock wahser for impeller1Stl
    3*Mechanical seal box22223-01-301Hard Iron
    3*Packing seal box20614-01-301Hard Iron
    3ATightening nut for mechanical seal box3861-1172Stl
    4Packing pressing bush20622A1Bronze
    5Mechanical seal22451-11Tungsten Carbide
    5APacking 12×1225014-04M-B3Kevlar
    6L bolt assemblyB3701A2Stl
    7Shaft20612-02-331AISI 4140
    7AWear bushing(Mechanical seal)20943-211AISI E7140
    7AWear bushung (Packing seal)20613-21G-7A1AISI E7140
    7BKey4372-5-211416SS
    7CO-ring 51.5×2.6523444-01-721Viton
    8Water retaining ring22210-1A1Bronze
    8AO-ring 63×2.651Viton
    9Bearing base20618-12-11Cast Iron
    9A
    9B
    9CSquare head plug 1/28505-051Iron
    9DBreathing mouth8267-011Stl
    9E
    9F
    9GDetrusion bolt for pump shell2538-1A3Stl
    10AInside bearing cover206261Iron
    10BSeal washer for inside bearing cover206251Vefetable Fiber
    10COil seal20619-012Buna-n
    10DBolt for inside bearing cover3861-12Stl
    10ENut for inside bearing cover3932-22Stl
    10F
    10GAlemite fitting NPT1/821641-011Stl
    11Inside bearing NUP313EN/A1Vendor
    12Axial adjustment collar20624-01-011Iron
    12AO-ring 140×3.557496-2531Buna-n
    12BNut for axial adjustment collar3861-1384Stl
    12CDetrusion nut for axial adjustment collar3932-622Stl
    13Outside bearing20617-01-011Stl
    13AAlemite fitting NPT1/81Stl
    13BO-ring 120×3.557496-261Buna-n
    13COil seal 47.63×69.85×9.52520619-021Buna-n
    13DBolt for outside bearing cover3861-1392Stl
    14Bearing 7311B/DBN/A1Vendor
    14ALock wahser6124-41Stl
    14BLock nut6123-41Stl
    1*Pump case,3×2×1319203-01-30A1Hard Iron
    1*Pump case,4×3×1319205-01-30A1Hard Iron
    1*Pump case,5×4×1119222-01-30A1Hard Iron
    1*Pump case,6×5×1119122-01-30A1Hard Iron
    1*Pump case,6×5×1419123-01-30A1Hard Iron
    1*Pump case,8×6×1119763-01-30A1Hard Iron
    1*Pump case,8×6×1419117-01-30A1Hard Iron
    1*Pump case,10×8×1420937-01-30A1Hard Iron
    2*Impeller for pump,3×2×1319204-XX-301Hard Iron
    2*Impeller for pump,4×3×1319206-XX-301Hard Iron
    2*Impeller for pump,5×4×1119224-XX-301Hard Iron
    2*Impeller for pump,6×5×1119121-XX-301Hard Iron
    2*Impeller for pump,6×5×1419121-XX-301Hard Iron
    2*Impeller for pump,8×6×1119121-XX-301Hard Iron
    2*Impeller for pump,8×6×1419116-XX-301Hard Iron
    2*Impeller for pump,10×8×1421867-XX-301Hard Iron
    xx or A0 - Impeller code - First is equal to the integer of impeller diameter(inch) - 4. Thus 10 =6,9=5,8=4,etc...14 Use alphabet A.
    Second X is the magnification of 1/8.Thus 1/8=1,1/4=2,1/2=4,etc...thus a impeller code of 10.5 is 64,impeller code of 12 is 80,
    impeller code of 13.25 is 92 etc.

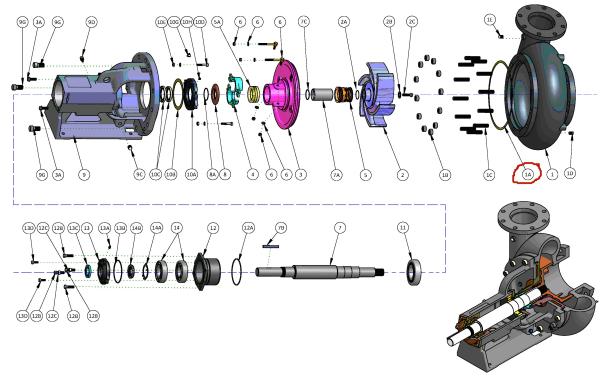

    Structure Chart of Mission Centrifugal Pump
