    870r/Min Impeller Speed Vacuum Degasser For HDD Drilling Mud Circulation System

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRZCQ270
    Certification : API Certificate, ISO9001 Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 30 Sets/Month
    Delivery Time : Within 25 days after deposit
    • Product Details
    • Company Profile

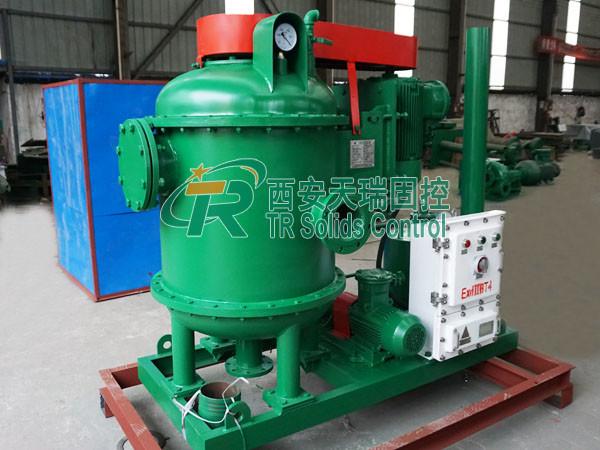

    870r/Min Impeller Speed Vacuum Degasser For HDD Drilling Mud Circulation System

    HDD Drilling Mud Circulation System Vacuum Degasser / High Impeller Speed 870r/min


    Introduction


    Vacuum Degasser is a special purpose product for gas treatment in drilling fluids. This unit is positioned downstream from shale shaker, mud cleaner and mud gas separator, while hydrocyclones and centrifuges follow in the arrangement. It is used to remove small entrained gas bubbles left in the mud by mud gas separator.


    Drilling vacuum degasser plays an important role in removing dissolved gases and gas bubbles. The gas like methane, CO2 and H2S need to be released and broken from the mud to the surface in drilling fluids. TRZCQ vacuum degasser is simple in design and operation. It is one of solids control and waste management equipment used in oil and gas drilling industry.


    Application


    Our drilling vacuum degassers are widely used in these industries: Trenchless HDD & Tunnelling, Oil Mud Seperation, Oil Sludge Dewatering Systems, Drilling Waste Management, Oil and Gas Drilling, Water Drilling, Coal Bed Gas Solids Control System, Bored Piling etc.


    Features of TRZCQ Series Vacuum Degasser

    1. Water ring type of vacuum pump work is suitable for flammable and explosive gas suction.
    2. Gas-water separator in vacuum degasser saves water and environment-friendly.
    3. Scientific and reasonable design for structure achieves effective separation of gas and liquid.
    4. TR vacuum degasser has high degassing efficiency up to 95%.
    5. Self-priming device enables it to pump drilling fluids without centrifugal pump.
    6. Belt drive guarantees the long time working time without trouble.

    Technical Data of TRZCQ Series Vacuum Degasser


    ModelTRZCQ240TRZCQ270TRZCQ300TRZCQ360
    Body Diameter700mm800mm900mm1000mm
    Handling Capacity240 m³/h270 m³/h300 m³/h360 m³/h
    Vacuum Degree-0.030-0.045Mpa-0.030-0.050Mpa-0.030-0.045Mpa-0.030-0.045Mpa
    Transmission Ratio1.681.681.681.72
    Degassing Efficiency≥95%≥95%≥95%≥95%
    Motor Power15kW22kW30kW37Kw
    Vacuum Pump Power2.2kW3kW4kW7.5kW
    Impeller Speed860r/min870r/min876r/min880r/min
    Dimension1750×860×1500mm2000×1000×1670mm2250×1330×1650mm2400×1500×1850mm
    Weight1100kg1350kg1650kg

    1800kg



    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet


    Customer's satisfaction is the highest pursuit of TR Solids Control.
