Solid Control Equipment Drilling Fluid Equipment Desilter / Mud Desilter

Introduction

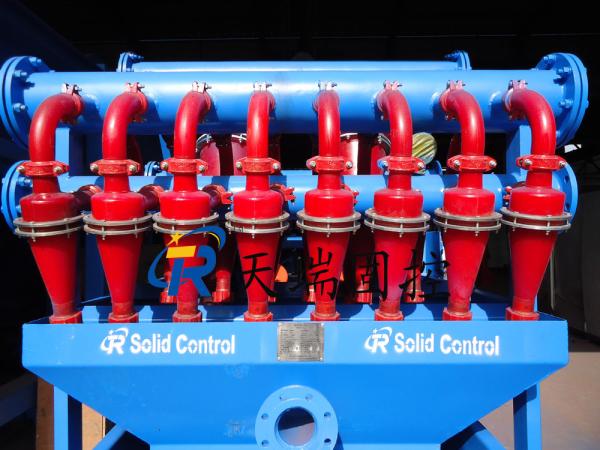

TRCN100×16 desilter cleaner are completed with 100mm polyurethane hydrocyclones, mud trough, manifold, motor, shale shaker, base and all necessary connections.The upper part of hydrocyclone is cylindrical with a tangential suction tube and a overflow tube in center. The lower part of hydrocyclone is cone with bottom silt discharge tube. The upper part and lower part are connected by hoop.

TRCN series Drilling Desilter can be fit with the bottom shale shaker or not. Or it can be combined with shaker and desander together to be the mud cleaner. We call desilter as the 3rd phase solids control equipment. TR Solids Control is well-known desilter designer and manufacturer in China. We will provide our clients high quality product with reasonable price. Desilter produced by TR Solids Control can be adjusted to control the handling capacity to match the different requirements. It is widely used in petroleum drilling and HDD (Horizontal directional drilling).

Main Benefits of TRCN series desilter:

1. Vibration motor is form Italy OLI or America Martin.
2. Cones adopt high wearing-resisting polyurethane and high-chromium iron.
3. Inlet and outlet adopt fast joint connection.
4. Heat treatment on complete deck, grinding sand, pickling phosphating and hot dip galvanizing.
5. High strength compound rubber material used to reduce shocking.
6. Painting: Heavy anti-corrosion paint .
7. Electrinic control system if from famous brand explosion-proof eletronic switch.

Parameters of TRCN Drilling Mud Desilter

Usage & Application Scope

As a solids control equipment of the third stage in drilling operation, mud desilter is used to remove solid particles of 20-40 µm in drilling liquid. The desilter of this type that has been reformed many times on the applications for years is reliable in technical performance and provides very good treatment results. Its water cyclone is of long service life and stable performance. It is applicable to various kinds of drills in the oilfields and other industries.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.

Xi'An TianRui Petroleum Machinery Equipment Co.,Ltd. (For short: TR Solids Control) is a professional manufacturer of solids control equipment and mud recovery system, located in Xi'an City, China. Since 2010, TR Solids Control focused on the development and production of various types of solids control equipment & system. Our R&D personnel are composed of rich experienced crew who have long-time work on oil drilling mechanical design, so we supply professional drilling solids control equipment with the enterprise spirit of continuously improvement and constantly innovation.

Our main products include: drilling mud shale shaker, decanter centrifuge, mud agitator, mud cleaner, desander, desilter, vacuum degasser, submersible slurry pump, centrifugal pump, screw pump, shear pump, jet mud mixer, mud hopper, liquids gas separator, flare ignition device, mud tank. Spare parts like shaker screens, hydrocyclones, impeller, mechanical selas and gear box etc. They are widely used in oil and gas drilling, coal bed methane system, trenchless HDD & tunneling, micro-tunneling, drilling waste management, bored pile construction, etc.

TR Solids Control brings in international advanced technology and imports high precision processing equipment for production, and builds talent training cooperation relations with lots of university in Xi’An city for replenishing new blood continuously to us. We also formed a high-tech modern integrated enterprise with design, manufacture, sales and service. TR Solids Control has our own improved management system, high level professionals and excellent service team. Our production management strictly implements API quality specification requirements, and we have strict regulations to materials procurement, producing and processing , equipment debugging and whole process of equipment ex-factory. We’re fully capable of supplying satisfied products and services timely as per client’s request.

In terms of products quality management, TR Solids Control continuously update our own management level. We passed the international quality management system ISO9001-2015. TR Solids Control pursuits high-quality product and establishes excellent quality management system, this enables us to get the appraoval from clients.

TR Solids Control adheres to the enterprise purpose--Customers’ Satisfaction is the Highest Pursuit of us. Our goal is to create the global famous brand enterprise, and supply excellent and stable drilling fluids recycling purification system and HDD(Horizontal Direction Drilling) mud recycling system to users. Our products are used in Chanceful Oilfield in north of Shaaban, Chang Oilfield, Sinkiang Oilfield and other national drilling company. At the same time we exported our products to almost 40 countries and regions like South America, US, Europe, Egypt, Dubai, Abu Dhabi, Oman, Pakistan, Russia, Australia, Korea, Vietnam, Myanmar, etc.

Our goal is simple: to sell the best equipment at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Solids Control Equipment, to help others achieve their goals.
