TRCS Series Desander Solids Control Equipment For Mud Treatment 300m3/H 3 Hydrocyclone

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap TRCS Series Desander Solids Control Equipment For Mud Treatment 300m3/H 3 Hydrocyclone from wholesalers

    Buy cheap TRCS Series Desander Solids Control Equipment For Mud Treatment 300m3/H 3 Hydrocyclone from wholesalers
    • Buy cheap TRCS Series Desander Solids Control Equipment For Mud Treatment 300m3/H 3 Hydrocyclone from wholesalers
    • Buy cheap TRCS Series Desander Solids Control Equipment For Mud Treatment 300m3/H 3 Hydrocyclone from wholesalers

    TRCS Series Desander Solids Control Equipment For Mud Treatment 300m3/H 3 Hydrocyclone

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRCS250-3S
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 20 Pcs / Month
    Delivery Time : Within 20 days after deposit
    • Product Details
    • Company Profile

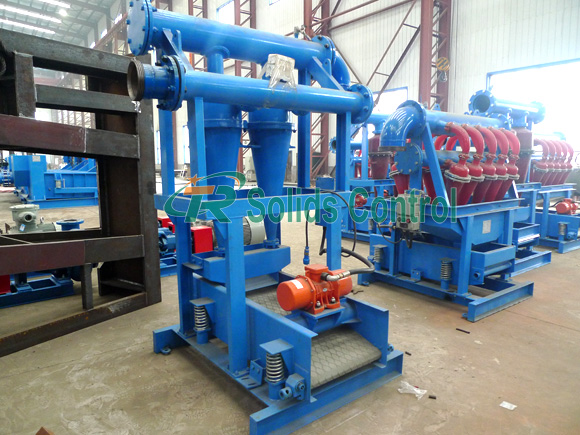

    TRCS Series Desander Solids Control Equipment For Mud Treatment 300m3/H 3 Hydrocyclone

    High Efficiency API Standard Drilling Mud Desander with Factory Price


    Introduction


    Mud desanders have been a mainstay product of ours that is constantly in demand from our clients. TR Solids Control’s TRCS series desanders rectify the shortcomings of traditional desanding processes. They are made up of an inlet pipe, desanding hydrocyclone, underflow shaker and discharge port. Our desanders excel with high-quality hydrocyclones, large capacity, low noise, strong separation ability, long service time, and easy maintenance. They are increasingly gaining popularity among our clientele.

    TR Desander cyclone components are made from high-chromium cast iron or pure polyurethane materials, which our customers can choose from independently. We can also interchange them with international brands. The TRCS series mud desanders demonstrate high separation ability and a wide separation range, being capable of removing solid particles ranging from 45 um to 1mm. The underflow cyclone is pressurized umbrella “wet bottom” design, which facilitates the prompt discharge of particles in the separation zone, reducing the chances of blockage.


    Key Traits of TR Drilling Desander

    1. Compact design with small footprint.
    2. Pure polyurethane or high-chromium for hydrocyclones.
    3. Clamp connection for hydrocyclones installation, easy to dismantle and replace.
    4. Replaceable hydrocyclones.
    5. Flexible options for 1, 2 or 3 pieces of 10" or 12" cones for different capacities.
    6. Internation brand vibrating motor, Martin or Oli Motor.
    7. Flexible fast connection are available for user assembly.

    Technical Specification of TR Mud Desander


    ModelTRCS200-1S/2STRCS250-1S/2STRCS250-3STRCS300-1S/2S
    Capacity60m3/120m3/h100m3/200m3/h300m3/h120m3/240m3/h
    Cyclone Specs8”10”10”12”
    Cyclone Qty1nos/2nos1nos/2nos3nos1nos/2nos
    Working Pressure0.25-0.4Mpa
    Inlet SizeDN125mmDN150mmDN150mmDN150mm
    Outlet SizeDN150mmDN200mmDN200mmDN200mm
    Separation Point45μm -75μm
    Bottom ShakerTRTS60TRTS60TRZS752TRZS752
    Dimension1510*1160*2000mm1510*1360*2250mm1835*1230*1810mm1835*1230*1810mm
    Weight570kg/620kg670kg/760kg1300kg1380kg
    RemarkAll desander could be customized without bottom shaker.


    Main Applications


    Our TRCS series mud desander is widely utilized in various fields such as city bored piling, drilling waste management, trenchless HDD, oil and gas drilling, tunneling construction, coal bed gas solids control system, mining, oil mud separation, oil sludge dewatering systems, environmental protection, water drilling, and others. Our drilling mud desander has been exported to various countries including Vietnam, Egypt, Germany, UAE, US, Australia, Thailand, and others. If you have any new inquiries, please feel free to contact us.

    Competitive Advantages
    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.


    Quality TRCS Series Desander Solids Control Equipment For Mud Treatment 300m3/H 3 Hydrocyclone for sale
