    TRLW Series Bowl Speed 2200r/min Decanter Centrifuge for Drilling Mud Solids Control

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRLW600B-1
    Certification : API Certificate, ISO9001 Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 20 Sets / Month
    Delivery Time : Within 25 days after deposit
    • Product Details
    • Company Profile

    TRLW Series Bowl Speed 2200r/min Decanter Centrifuge for Drilling Mud Solids Control

    High Speed Drilling Fluids Decanting Centrifuge with Short Delivery / Mud Decanter Centrifuge


    Introduction

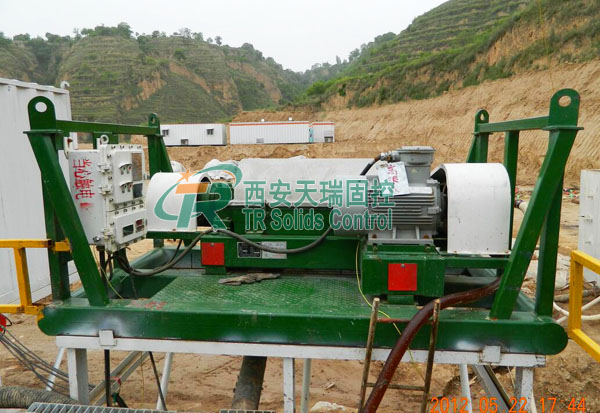

    TRLW series decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity. According to different rotating speed, it can be defined as middle speed, high speed and high speed VFD centrifuge. It is mainly used for recycling the barite, removing the fine solid particles sized in 2-7μm, controlling the density and viscosity of drilling fluid to keep the drilling fluid performance.


    TR Decanter Centrifuge is designed for the drilling mud solids control and oilfield waste management. We have decanter mud centrifuge from 9 inch bowl to 22 inch bowl available for different applications. TRLW decanter centrifuge bowl length and diameter ration is over 3, this gives the best result for the drilling fluids cleaning.


    Main Advantages of TRLW Series Decanter Centrifuge
    1. Straight and cone section of the drum are made from 2205 duplex stainless steel material, adopt centrifugal casting process.
    2. Remaining components of the drum assembly are made from SS316L.
    3. Drum assembly is protected with demountable support frame in transit, preventing damage to bearing.
    4. Schneider or Siemens electrical components. Current overload & mechanical limit switch dual protections.
    5. Using imported SKF and NSK bearings to improve equipment stability and bearing life.
    6. Diversion port of screw pusher and slag-drip opening of the drum are protected by replaceable wear-resistant alloy sleeve, delaying the service life and maintenance cycle.
    7. Frequency control facilitates customers to adjust speed at any time, meeting different working conditions.
    8. Screw carrier adopts YG6 wear-resistant alloy sheet protection. With long life, easy maintenance and replacement.

    Technical Data of Decanting Centrifuge


    ModelTRGLW355N-1TRGLW450N-2TRGLW450N-3TRGLW550N-1
    Bowl Diameter355mm (14inch)450mm (17.7inch)450mm (17.7inch)550mm (22inch)
    Bowl Length1250mm(49.2inch)1250mm(49.2inch)1600(64inch)1800mm(49.2inch)
    Max Capacity40m3/h60m3/h70m3/h90m3/h
    Max Speed3800r/min3200r/min3200r/min3000r/min
    Rotary Speed3200r/min3000r/min2800r/min2600r/min
    G-Force3018257825782711
    Separation2~5μm2~5μm2~5μm2~5μm
    Main Drive30kW-4p30kW-4p45kW-4p55kW-4p
    Back Drive7.5kW-4p7.5kW-4p15kW-4p22kW-4p
    Weight2950kg3200kg4500kg5800kg
    Dimension2850X1860X12502600X1860X12502950X1860X12503250X1960X1350

    (Note: Rotary speed can be adjustable as per user's requirements)



    TRLW series decanter centrifuge is widely used in oil & gas drilling, tunneling construction, trenchless HDD, Drilling Waste Management, city bored piling, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Pharmaceutical Industry,chemical Industry, food industry, mining, Water Drilling, Oil Sludge Dewatering Systems, etc.


    Competitive Advantages
    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
