7.5kw Vacuum Degasser For Gas Immersed Drilling Fluid

    Buy cheap 7.5kw Vacuum Degasser For Gas Immersed Drilling Fluid from wholesalers

    Buy cheap 7.5kw Vacuum Degasser For Gas Immersed Drilling Fluid from wholesalers
    • Buy cheap 7.5kw Vacuum Degasser For Gas Immersed Drilling Fluid from wholesalers
    • Buy cheap 7.5kw Vacuum Degasser For Gas Immersed Drilling Fluid from wholesalers

    7.5kw Vacuum Degasser For Gas Immersed Drilling Fluid

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRZCQ360
    Certification : API Certificate, ISO9001 Certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 3000 Sets/Month
    Delivery Time : Within 25 days after deposit
    • Product Details
    • Company Profile

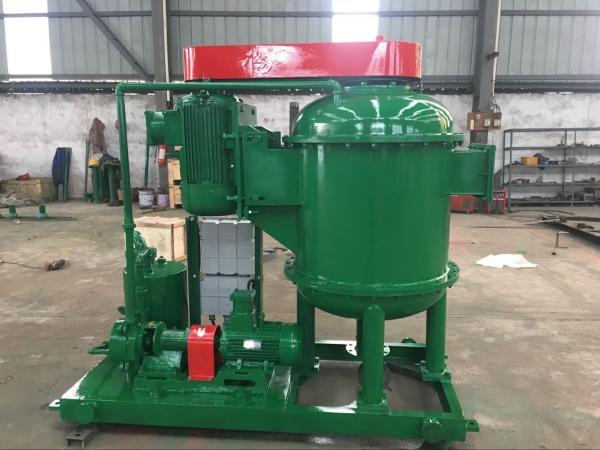

    7.5kw Vacuum Degasser For Gas Immersed Drilling Fluid

    API China Vacuum Degasser Manufacturer for Gas Immersed Drilling Fluid


    Product Introduction


    Vaccum degasser is a solid-control device that specifically handles invading drilling fluids, invasive gas in drilling fluid can be quickly removed, recovery drilling fluid proportioin and stable drilling fluid performance. It is an indispensable equipment for exploration wells, ultra-deep wells and underbalanced well drilling projects, suitable for supporting various drilling fluid circulation perification systems.


    TR Vacuum Degassers are able to serve the needs of any application. It's usually installed after shale shakers. Each degasser can efficiently and effectively remove gases from gas-cutmud, thus ensuring the proper mud weight is pumped down hole. By doing so, degassers are able to aid in the prevention of potential blowouts. Unlike the traditional vacuum degasser, our degasser is a self-contained unit. It is monitored by level sensor to protect over suction of the fluids.


    Main Features of Oilfield Vacuum Degasser

    1. Belt drive guarantees the long time working time without trouble.​
    2. Gas-water separator in vacuum degasser saves water and environment-friendly.
    3. Scientific and reasonable design for structure achieves effective separation of gas and liquid.
    4. TR vacuum degasser has high degassing efficiency up to 95%.
    5. Water ring type of vacuum pump work is suitable for flammable and explosive gas suction.
    6. Self-priming device enables it to pump drilling fluids without centrifugal pump.

    Technical Parameters of Vacuum Degasser


    ModelTRZCQ240TRZCQ270TRZCQ300TRZCQ360
    Body Diameter700mm800mm900mm1000mm
    Capacity240 m³/h270 m³/h300 m³/h360 m³/h
    Vacuum Degree-0.030-0.045Mpa-0.030-0.050Mpa-0.030-0.045Mpa-0.030-0.045Mpa
    Transmission Ratio1.681.681.681.72
    Degassing Efficiency≥95%≥95%≥95%≥95%
    Motor Power15kW22kW30kW37Kw
    Vacuum Pump Power2.2kW3kW4kW7.5kW
    Impeller Speed860r/min870r/min876r/min880r/min
    Dimension1750×860×1500mm2000×1000×1670mm2250×1330×1650mm2400×1500×1850mm
    Weight1100kg1350kg1650kg1800kg


    If you want to buy Vacuum Degasser, you just need to be prepared to answer these following questions:
    1.What is the handling capacity?Such as 240m­­­3/h,270m­­­3/h,300m­­­3/h,360m­­­3/h.
    2.What is the diameter of the main body? 700mm,800mm,900mm,1000mm.
    3.What is the power of the Vacuum pump? Such as 2.2 kw, 3 kw,4kw,kw
    4.What is the power of the main motor? Such as 15kw,22kw,30kw,37kw.
    5.What are the dimensions?


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet


    Customer's satisfaction is the highest pursuit of TR Solids Control.
