    TRSB5*4-14J Single Jet Mud Mixer 0.25 To 0.4Mpa 37kw Moter Power

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRSLH150-30
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 30 Sets Per Month
    Delivery Time : 20 days after deposit
    • Product Details
    • Company Profile

    TRSB5*4-14J Single Jet Mud Mixer 0.25 To 0.4Mpa 37kw Moter Power

    Power 37KW 0.25 to 0.4Mpa Jet Mud Mixing , For Oilfield Mud Treatment And Mixing


    Introduction

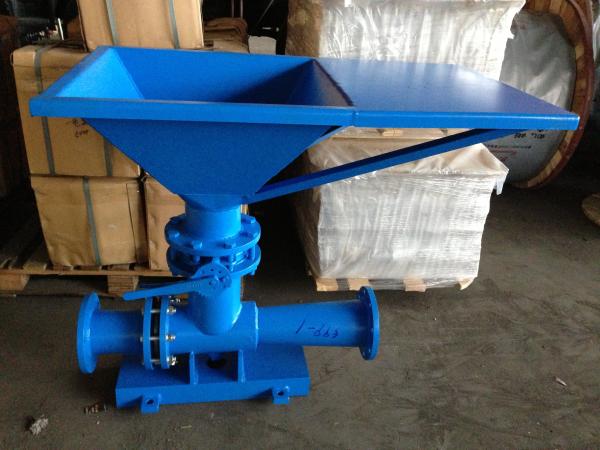

    Jet Mud Mixer is the equipment to match with drilling solids control equipment, generally used for mixing and adjusting the proportion of drilling fluid, changing the density, viscosity and water loss etc. It has much excellent operation if being matched with shear pump, and also can be designed to single or double jet mud mixer as the clients’ requirements. TR jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base with pipe valves. Its hopper and centrifugal pump either can be combined or be installed separately.


    TRSHL series jet mud mixer is safe and reliable, and easy to move. It can enhance dispersion effect of material, improve pressure head of mixed liquid, make the material recycle and mix enough in mud tank.


    Application


    Our drilling jet mud mixer is widely used in these industries: Trenchless HDD & Tunnelling, Oil Sludge Dewatering Systems, Oil and Gas Drilling, Drilling Waste Management, Water Drilling, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling.


    Features of TRSLH Series Jet Mud Mixer


    1. Single jet mud mixer consists of one centrifugal pump, one jet mixing hopper that are installed in a base with pipe valves. Duplex jet mud mixer is composed of two sand pumps and two jet mixing hoppers.
    2. The jet mixing hopper and sand pump can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, with good sealing performance.
    3. Jet mud mixer can change the density, viscosity and water loss effectively, and also improve the mixed liquid pressure head, enhance material dispersion effect, so that the material in the tank mixed fully.


    Technical Data of TRSLH Series Jet Mud Mixer

    ModelTRSLH150-50TRSLH150-40TRSLH150-30TRSLH100
    Matched PumpTRSB8×6-13J(55kw)TRSB6×5-13J(45kw)TRSB5×4-14J(37kw)TRSB4X3-11J(15kw)
    Treating Capacity240m3/h180m3/h120m3/h60m3/h
    Working Pressure0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa
    Inlet Diameter150mm150mm150mm100mm
    Nozzle Diameter50mm40mm30mm30mm
    Hopper Size750x750mm750x750mm600x600mm600x600mm
    Burden Speed≤100kg/min≤80kg/min≤60kg/min≤40kg/min
    Weight1600kg1450kg1300kg1100kg
    Dimension2200*1700*1200mm2200*1700*1200mm2000*1650*1100mm2000*1650*1100mm


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

    Company Tenet

    Customer's satisfaction is the highest pursuit of TR Solids Control.
