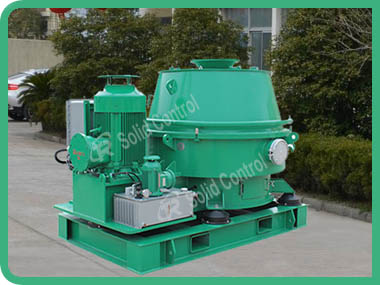

Customized Solids Control Vertical Cutting Dryer , For Horizontal Directional Drilling

Introduction

Drilling vertical cutting dryer is also known as filter centrifuges. It’s a kind of centrifugal separator that uses filtering method to separate components from suspension liquid. There are many holes on the wall of vertical cutting dryer drum, and the inner surface of drum covers filter medium. The suspension liquid added to the drum generates a huge centrifugal pressure by rotating with drum. Under pressure, the liquid in suspension flowing through filter medium and the hole in the wall of the drum is thrown away, solid is trapped on the surface of filter medium, thus we realize solids and liquids separation. The centrifugal force generated by the suspension in the rotating drum is thousands of times that of gravity, so that the filtration process is intensified and filtration speed is increased. In this process filter residue with a lower moisture content is obtained. Suspensions with solid particles larger than 0.01 mm is filtered with vertical cutting dryer.

TR Vertical Cutting Dryer uses centrifugal force to dry drilling solids in oil or synthetic base fluids. A stainless steel screen bowl traps “wet” solids and accelerates them up 900RPM with G force to 420G or super high speed 1200RPM with G force to 750G. It's one of the most widely used vertical centrifuges in the treatment of cuttings and waste disposal, and also very important solids control equipment in drilling waste management. It can deal with large numbers of waste sediment efficiently and quickly, and reduce oil and water content of the cuttings. After treatment, oil content (OOC) of the cuttings is below 5%. They are up to the international drilling fluid cuttings discharge standard, and meet the increasingly stringent environmental protection requirements.

Advantages of TRCD Series Vertical Cutting Dryer

• The highest rotary speed is 900 rpm. It could form 420 G separation factor, and separate the fluid in drilling waste effectively;
• Every changeable selected parts pass dynamic balance test, meeting the balance of the complete machine;
• Assembled with air knife, making it prevent basket from blocking;
• Independent oil cooling system, matched with scientific oil tank cooling system, making it meet operating requirement in high temperature environment;
• Advanced design and efficient capacity;
• Discharging scraper is made from high chromium cast iron, with long service life.

Technical Data of TRCD Series Vertical Cutting Dryer

Main Application
TRCD series vertical cutting dryer is mainly used in these industries: Trenchless HDD & Tunnelling, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, Drilling Waste Management, Oil Mud Seperation, Oil and Gas Drilling, Bored Pile. TR Solids Control exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.

Xi'An TianRui Petroleum Machinery Equipment Co.,Ltd. (For short: TR Solids Control) is a professional manufacturer of solids control equipment and mud recovery system, located in Xi'an City, China. Since 2010, TR Solids Control focused on the development and production of various types of solids control equipment & system. Our R&D personnel are composed of rich experienced crew who have long-time work on oil drilling mechanical design, so we supply professional drilling solids control equipment with the enterprise spirit of continuously improvement and constantly innovation.

Our main products include: drilling mud shale shaker, decanter centrifuge, mud agitator, mud cleaner, desander, desilter, vacuum degasser, submersible slurry pump, centrifugal pump, screw pump, shear pump, jet mud mixer, mud hopper, liquids gas separator, flare ignition device, mud tank. Spare parts like shaker screens, hydrocyclones, impeller, mechanical selas and gear box etc. They are widely used in oil and gas drilling, coal bed methane system, trenchless HDD & tunneling, micro-tunneling, drilling waste management, bored pile construction, etc.

TR Solids Control brings in international advanced technology and imports high precision processing equipment for production, and builds talent training cooperation relations with lots of university in Xi’An city for replenishing new blood continuously to us. We also formed a high-tech modern integrated enterprise with design, manufacture, sales and service. TR Solids Control has our own improved management system, high level professionals and excellent service team. Our production management strictly implements API quality specification requirements, and we have strict regulations to materials procurement, producing and processing , equipment debugging and whole process of equipment ex-factory. We’re fully capable of supplying satisfied products and services timely as per client’s request.

In terms of products quality management, TR Solids Control continuously update our own management level. We passed the international quality management system ISO9001-2015. TR Solids Control pursuits high-quality product and establishes excellent quality management system, this enables us to get the appraoval from clients.

TR Solids Control adheres to the enterprise purpose--Customers’ Satisfaction is the Highest Pursuit of us. Our goal is to create the global famous brand enterprise, and supply excellent and stable drilling fluids recycling purification system and HDD(Horizontal Direction Drilling) mud recycling system to users. Our products are used in Chanceful Oilfield in north of Shaaban, Chang Oilfield, Sinkiang Oilfield and other national drilling company. At the same time we exported our products to almost 40 countries and regions like South America, US, Europe, Egypt, Dubai, Abu Dhabi, Oman, Pakistan, Russia, Australia, Korea, Vietnam, Myanmar, etc.

Our goal is simple: to sell the best equipment at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Solids Control Equipment, to help others achieve their goals.
