    Hydrocyclones Drilling Mud Desander 0.25 - 0.4mpa 3nos 10inch

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRCS3S
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 200 Pcs / Month
    Delivery Time : Within 20 days after deposit
    • Product Details
    • Company Profile

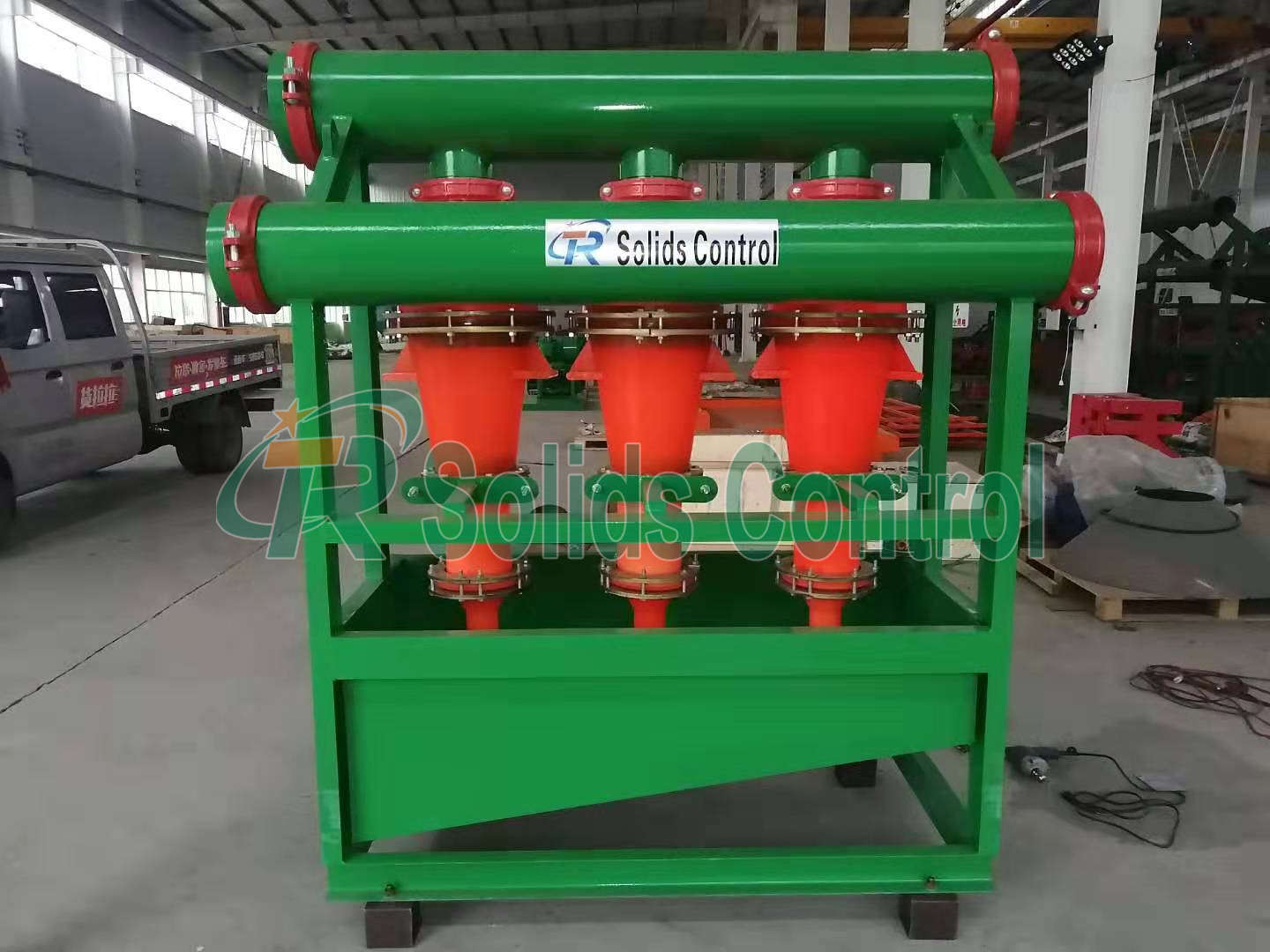

    Hydrocyclones Drilling Mud Desander 0.25 - 0.4mpa 3nos 10inch

    1800 GPM Drilling Mud Desander Without Bottom Shaker


    Introduction


    Drilling mud desander is the second phase cleaning for a whole solids control system, It sit on mud tank for separate drilling cuttings 47-76 micron and above by centrifugal force. The untreated mud will feed into desander cone at the horizontal inlet at pressure, the pressure and weight will help solids particles moving beside cone wall and drop down, fluids particles will be press on top and over flow away through pipeline. There can be a shaker to collect solids particles from desander nozzle or drop onto a hoper directly.

    Our mud desander cleaner is mainly used to remove finer solid particles from the drilling fluid. The equipment desalination capacity than the previous desander to increase 30% -50%, in order to improve the drilling speed and reduce the cost of drilling to provide reliable protection, and can play the role in the deep well desander and desilter.


    Main Benefits of TR Drilling Mud Desander

    1. Compact design with small footprint.
    2. Pure polyurethane or high-chromium for hydrocyclones.
    3. Flexible fast connection are available for user assembly.
    4. Internation brand vibrating motor, Martin or Oli Motor.
    5. Clamp connection for hydrocyclones installation, easy to dismantle and replace.
    6. Replaceable hydrocyclones.
    7. Flexible options for 1, 2 or 3 pieces of 10" or 12" cones for different capacities.

    Main Parameters of TR Drilling Mud Desander


    ModelTRCS200-1S/2STRCS250-1S/2STRCS250-3STRCS300-1S/2S
    Capacity60m3/120m3/h100m3/200m3/h300m3/h120m3/240m3/h
    Cyclone Specs8”10”10”12”
    Cyclone Qty1nos/2nos1nos/2nos3nos1nos/2nos
    Working Pressure0.25-0.4Mpa
    Inlet SizeDN125mmDN150mmDN150mmDN150mm
    Outlet SizeDN150mmDN200mmDN200mmDN200mm
    Separation Point45μm -75μm
    Bottom ShakerTRTS60TRTS60TRZS752TRZS752
    Dimension1510*1160*2000mm1510*1360*2250mm1835*1230*1810mm1835*1230*1810mm
    Weight570kg/620kg670kg/760kg1300kg1380kg
    RemarkAll desander could be customized without bottom shaker.


    Application


    Our Mud Desander is widely used in solid liquid separation, city bored piling, Drilling Waste Management, trenchless HDD, oil & gas drilling, tunneling construction, Oil Mud Seperation, Coal Bed Gas Solids Control System, mining, Oil Sludge Dewatering Systems, environment protection, Water Drilling etc. Our mud desander has good price and short delivery. It conforms to both API and ISO standard. We are sincerely waiting for your consulting!


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
