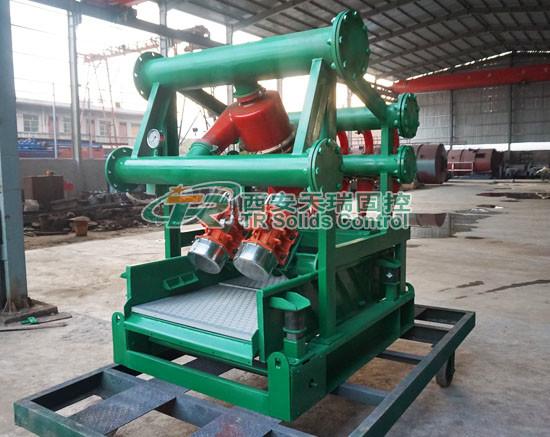

    API / ISO9001 Certificate Drilling Mud Cleaner 0.25 - 0.4Mpa 4" Desilter Cyclone

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRQJ250*2S-100*12N
    Certification : API Certificate, ISO9001 Certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 30 Sets / Month
    Delivery Time : Within 20 days after deposit
    • Product Details
    • Company Profile

    API / ISO9001 Certificate Drilling Mud Cleaner 0.25 - 0.4Mpa 4" Desilter Cyclone

    API Standard Oilfield Drilling Mud Cleaner with Large Capacity and High Efficiency


    Introduction

    Our mud cleaner structure is compact. It occupy small space and the function is powerful. Mud cleaner is the ideal device of the second class and the third class solid control to treat the drilling mud. We can design customized cost-effective mud Cleaner for customers special needs. Our mud cleaner can meet almost all needs for oil & gas well drilling fluids treatment system and HDD Mud Recycling System.


    Mud cleaner is a combination of desander and or desilter and mounted over a shale shaker with a fine mesh screen. Mud is fed into inlet of hydrocyclone to separate particles and the underflow paases to the fine mesh where in particles larger than barite are discarded and thrown away. TRQJ series drilling mud cleaner are combined from Desander, Desilter and and Underflow Screen. Our Mud cleaner has the higher cleaning function compared with separated desander and desilter.


    Advantages of TRQJ Series Mud Cleaner

    1. Compact design with small footprint, with top feed and weir feed two option.
    2. Hook-strip shaker screens for fast screens changing with screens.
    3. Mechanical Deck is adjustable during operation, reliable performance.
    4. Polyurethane ( PU ) material, high-chromium cast iron or ceramic to make desander and desilter cones.
    5. Desilter cones can be installed between eight and twenty 4" or 5" desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 μm.
    6. Desander cones can be installed between one and three 10" desander cones, each cone can process 500 GPM and makes a separation between 45 and 75 μm.

    Specification of TRQJ Series Mud Cleaner


    ModelTRQJ200×1S-100×4NTRQJ200×2S-100×8NTRQJ250×2S-100×12NTRQJ25×3S-100×20N
    Capacity60m³/h120m³/h240m³/h320m³/h
    Desander Cyclone Specs8"10"
    Desander Cyclone Qty1223
    Desilter Cyclone Specs4"
    Desilter Cyclone Qty481220
    Working Pressure0.25~0.4mpa
    Inlet SizeDN125mmDN150mmDN150mmDN200mm
    Outlet SizeDN150mmDN200mmDN200mmDN250mm
    Separation Point15μm~44μm
    Bottom ShakerTRZS60TRZS752TRZS752TRZS703
    Dimension1.51×1.16×2.0m1.835×1.23×1.81m1.835×1.23×1.81m2.42×2.15×2.15m
    Weight600kg980kg1250kg2350 kg
    RemarkAll mud cleaners could be customized without bottom shaker.


    Product Application


    Our mud cleaner is widely used in oil & gas drilling, trenchless HDD, tunneling construction, city bored piling, Drilling Waste Management, Oil Mud Seperation, Oil Sludge Dewatering Systems, environment protection, Coal Bed Gas Solids Control System, mining, Water Drilling etc.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
