    API Standard 18.5KW Shear Pump For Oil Gas Well Drilling High Performance

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRJQB4330
    Certification : ISO 9001:2008
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 5000 Sets / Month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    API Standard 18.5KW Shear Pump For Oil Gas Well Drilling High Performance

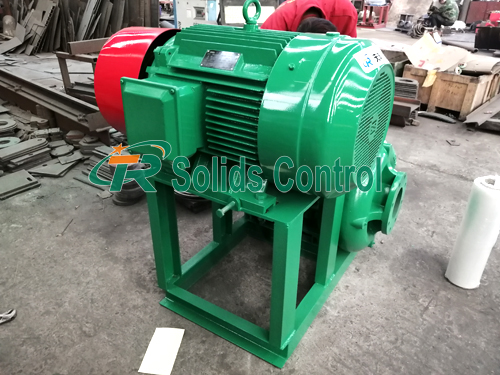

    API Standard 18.5KW Shear Type Pump for Oil Gas Well Drilling


    Brief Introduction


    Shear Pump is used as a mixer in drilling fluids solids control, belongs to centrifugal pump. GN JQB Shear pump including JQB6545,JQB6535,JQB4330,JQB4325,JQB3228,etc. TRJBQ serial shear pump is a special pump for solid-control drilling fluid additives, with 4 specifications, suitable for power grids of 50Hz and 60 Hz, and it has both Metric and British systems as measuring standards.


    TR Solids Control is a professional manufacturer engaged in shear pump with rich experience. Our shear pump can mix high property drilling mud very soon. Decrease the mixing time by much and enhance the drilling efficiency with great cost control, shear pump helps much on high quality drilling mud demand for well drilling & trenchless tunnelling construction.


    Main Specialities of TR Mud Shear Pump

    1. Material of TR mechanical seal is carbide alloy, its life is 5 times than normal.
    2. Pump body adopts wear-resistant alloy cast iron with long service life.
    3. Oil seal adopts imported fluorine plastic seal, with good cooling capacity.
    4. Using special impeller and shear board, shear efficiency> 95%.
    5. Pump shell wall is thick, made by casting mold. Wear-resistant, fine appearance.
    6. Bearings are internationally renowned brands SKF, quality assured.

    Main Parameters of TR Shear Pump


    ModelFlow RateLiftMotorWeightDimension
    TRJQB6545150m3/h45m55kw980kg1050×1000×1360mm
    TRJBQ6535100m3/h35m37kw800kg1050×1000×1230mm
    TRJBQ543060m3/h30m30kw650kg1050×1000×1100mm
    TRJBQ433040m3/h30m18.5kw450kg1050×1000×900mm


    Advantage of Our Shear Pump


    Maintain and enhance the excellent hydration effect of bentonite particles. Shearing pumps effectively accelerate the dispersion of bentonite to increase the surface contact area and ion exchange frequency of the particles, thereby to generate a better hydration velocity and drilling fluid rheological property. Particularly for offshore drilling with sea water drilling fluid.


    TR Solids Control is a professional manufacturer engaged in shear pump with rich experience. Our shear pump can mix high property drilling mud very soon. Decrease the mixing time by much and enhance the drilling efficiency with great cost control, shear pump helps much on high quality drilling mud demand for well drilling.


    TR shear pump adopts high quality mechanical seal with high durability. There won’t be any leakage. When drilling fluids flows pass shearing pump, there will be second cutting on the 50% fluid in the swirl collection room. Sometimes clients will require shearing mixing pump combined with shearing pump and mixing hopper.


    Competitive Advantages

    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
