    TRSB5*4-14J Oilfield Drilling Jet Mud Mixer With Mixing Hopper And Centrifugal Pump

    Oilfield Drilling Jet Mud Mixer with Mixing Hopper and Centrifugal Pump


    Brief Introduction


    Jet Mud Mixer is a kind of equipment for adding and mixing drilling fluids. Its effect is obvious to use along with shear pump. As an necessary equipment in solids control system, its main function is to change the viscosity, density, and dehydration of drilling fluids. Jet mud mixer is needed on the condition that making bentonite, chemical products and barite with clear water into drilling fluids which has specific property, or adding some additive in existing drilling fluids to change its property.


    TR jet mud mixer is the equipment matched with drilling solids control equipments, uausally used to configrate and increase the proportion of drilling fluid, change density, viscosity, water lose etc. It has a more excellent effect if matched with shear pump, and also can be designed to double jet mud mixer as requirements.


    Why Choose TR Jet Mud Mixer?

    1. Jet mud mixer can change the density, viscosity and water loss effectively, and also improve the mixed liquid pressure head, enhance material dispersion effect, so that the material in the tank mixed fully.

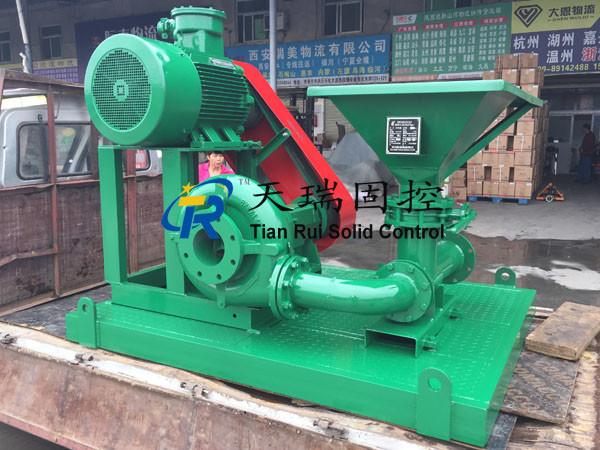

    2. Single jet mud mixer consists of one centrifugal pump, one jet mixing hopper that are installed in a base with pipe valves. Duplex jet mud mixer is composed of two sand pumps and two jet mixing hoppers.
    3. The jet mixing hopper and sand pump can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, with good sealing performance.
    Technical Information of TR Jet Mud Mixer

    ModelTRSLH150-50TRSLH150-40TRSLH150-30TRSLH100
    Matched PumpTRSB8×6-13J(55kw)TRSB6×5-13J(45kw)TRSB5×4-14J(37kw)TRSB4X3-11J(15kw)
    Treating Capacity240m3/h180m3/h120m3/h60m3/h
    Working Pressure0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa
    Inlet Diameter150mm150mm150mm100mm
    Nozzle Diameter50mm40mm30mm30mm
    Hopper Size750x750mm750x750mm600x600mm600x600mm
    Burden Speed≤100kg/min≤80kg/min≤60kg/min≤40kg/min
    Weight1600kg1450kg1300kg1100kg
    Dimension2200*1700*1200mm2200*1700*1200mm2000*1650*1100mm2000*1650*1100mm


    Our jet mud mixers are welcomed by clients for good price and high performance. Also, we have short delivery and many models for you to choose from. Nowadays TRSLH series jet mud mixer is widely used in oil & gas drilling, horizontal directional drilling, tunnel & microtunnelling, shield construction, etc. Welcome your inquiry at any time!


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

    Company Tenet

    Customer's satisfaction is the highest pursuit of TR Solids Control.
