    Carbon Steel Oilfield Single Plug Cement Head Casing 5 1/2"

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRSNT
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 pcs per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

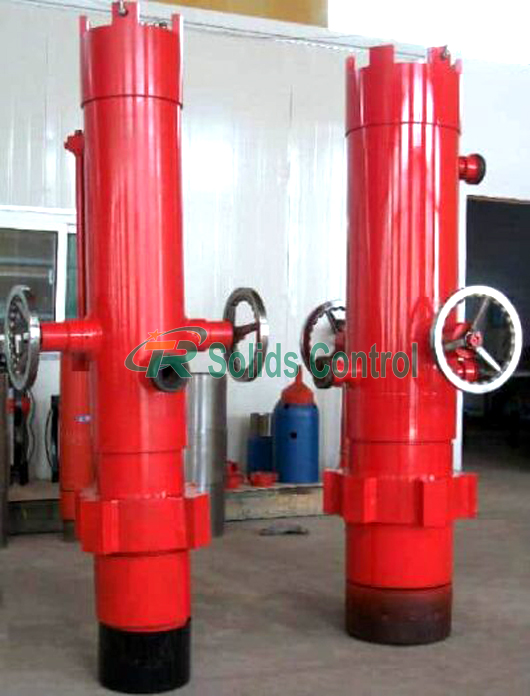

    Carbon Steel Oilfield Single Plug Cement Head Casing 5 1/2"

    Oilfield Cementing Single Plug Casing Cement Head 5 1/2"


    Product Descrption


    The Cement Head is a special tool for pumping slurry and releasing plug. It makes the drilling fluid fill into casing in turn and quickly. The casing cement-head with double plugs (called as cement-head ) is a common cementing tool used as wellhead unit in all kinds of cementing operation. Comparing to cement-head with single plug, it owns longer cement-head body , and upper rubber plug and lower rubber plug can be put in at same time. The tool owns some advantages such as simple construction, easy operation, high pressure resistant, manifold in common use, flexible in connecting. Especially, the lever type indicator can shows whether rubber plug goes through double plugs cement-head to enter casing so that operator can determine easily.


    The types of cementing head are various as single-plugs, double plugs cementing head and so on. Double plug cement head is a special tool for grouting cement and releasing rubber plugs. Two rubber plugs can be installed at the same time, which can be used for both conventional double plug cementing and continuous two-stage cementing.


    Main Advantages of Oilfield Cement Head


    1. Quick-latch adapter is designed to offer easier, faster and safer makeup for cementing casing.
    2. Able to couple with two plugs simultaneously. Simplify the cementing operation and prevent cement pollution.
    3. Positive lever indicates plug releasing.
    4. Balance pipe is developed.

    Product Parameters of Double Plug Cement Head


    Specifications (in)5 1/2"7"7 5/8"9 5/8"10 3/4"13 3/8"
    Overall Length (mm)195020202360236024401780
    Manifold2" 1502 Union
    ID of Plug Container (mm)Φ125Φ175Φ225Φ250Φ320ø 320
    Length of Plug Container (mm)400450550550600600
    Working Pressure (Mpa)35.5035.5035.5035.503521

    Product Parameters of Single Plug Cement Head


    Specifications (in)5 1/2"6 5/8"7"7 5/8"9 5/8"10 3/4"13 3/8"
    Overall Length (mm)1460150015001550175017501780
    Manifold2" Union
    ID of Plug Container (mm)ø125ø 150ø 160ø 175ø 225ø 250ø 320
    Length of Plug Container(mm)400450450450550550600
    Working Pressure (Mpa)35.5035.5035.5035.5035.503535


    In recent years, the company products are not only sold well in domestic market but also exported to different countries and areas in the world. Our products are very popular in the overseas market. A number of overseas well-known enterprises have established a long-term business relationship with us.


    Warmly welcome customers home and abroad to visit our company and give us valuable suggestions. We would like to have long term cooperation with customers from all over the world on the basis of mutual prosperity and development.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
