    2 Layers API RP 13C API 20 SS316L Shaker Screens

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRHY
    Certification : API RP 13 C
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 20000pcs/month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    2 Layers API RP 13C API 20 SS316L Shaker Screens


    Shaker Screens for HYP Series Shaker


    Product Overview

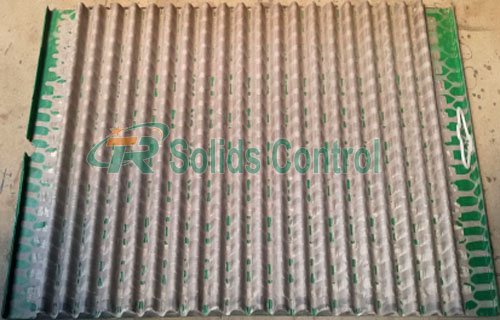

    The screen surface of wave shaker screen is the unique wavy, installation type can be hookstrip or steel frame wedge pressuring device. The effective filter area of wave screen can be 125% to 150% of the same mode flat screen, the treating capacity is increased. Our manufacture can manufacture many variety of specifications wave screen according to customers requirements.


    Competitive Advantges


    • Stainless steel 304/316 wire mesh for longevity.
    • Increase shaker capacity and reduce muds loss.
    • Non-blanked screening area increased by more than 20%.
    • Scientific & reasonable cost control system for competitive price.
    • API RP 13C (ISO 13501) compliant.
    • Adequate inventory in the shortest time to meet customers' demand.
    • Warranty Period: 1 year.
    • Working Life: 400–450 hours.

    Performance Parameters of Replacement HYP Shaker Screen


    Screen DesignationMesh TypeAPI RP 13C DesignationConductance NumberD100 Separation (microns)

    Layer No.


    Non-blank area (sq.ft)
    DH-A325DXAPI 3250.39442/35.66
    DH-A270DXAPI 2700.67572/35.66
    DH-A230DXAPI 2300.71682/35.66
    DH-A200DXAPI 2001.32732/35.66
    DH-A170DXAPI 1701.34832/35.66
    DH-A140DXAPI 1401.891012/35.66
    DH-A120DXAPI 1201.891342/35.66
    DH-A100DXAPI 1002.661642/35.66
    DH-A80DXAPI 802.761932/35.66
    DH-A70DXAPI 703.332032/35.66
    DH-A60DXAPI 604.12682/35.66
    DH-A50DXAPI 505.172852/35.66
    DH-A40DXAPI 408.644392/35.66
    DH-A35DXAPI 359.695382/35.66
    DH-A20DXAPI 2010.888092/35.66

    * D100: Particles this size and larger will normally be discarded.

    * API: Corresponding API sieve equivalent as per API RP 13C.

    * Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.



    Competitive Advantages
    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
