    320m3/H Large Capacity Mud Cleaner With 20pcs Desilter Cyclone 3pcs Desander Cyclone

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRQJ250*3S-100*20N
    Certification : API Certificate, ISO9001 Certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 30 Sets / Month
    Delivery Time : Within 20 days after deposit
    • Product Details
    • Company Profile

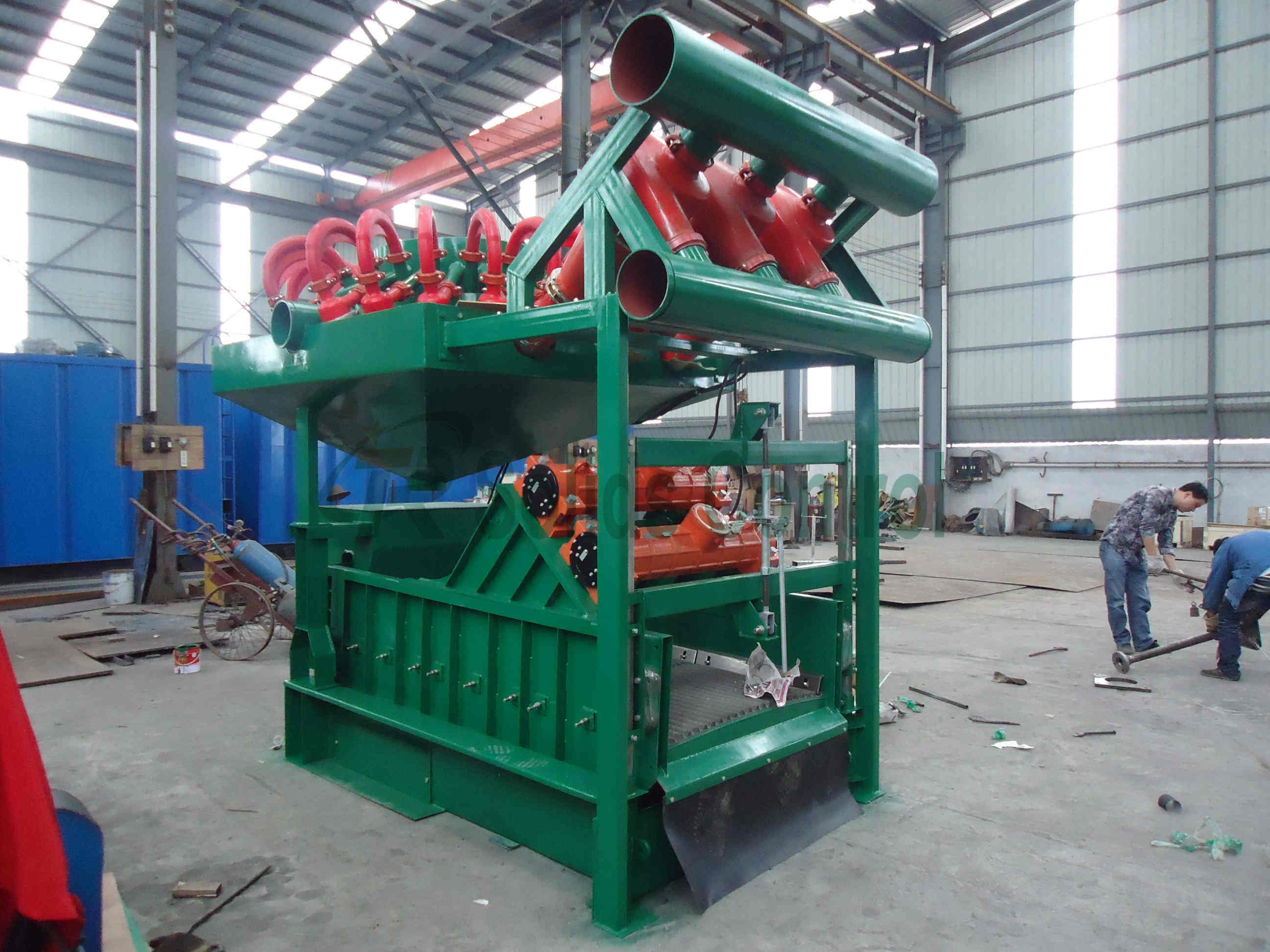

    320m3/H Large Capacity Mud Cleaner With 20pcs Desilter Cyclone 3pcs Desander Cyclone

    High Quality API Standard Drilling Mud Cleaner for Hot Sale , Oilfield Mud Cleaner


    Introduction


    Mud Cleaner is the second or third stage separation equipment for drilling fluids, which deals with the mud being treated by the first grade separation equipment. The barite will be recovered and cuttings which are bigger than barite will be removed. Then the barite in the underflow will flow into circulation tanks through the screens when weighted mud passes while the particles that are bigger than mesh will be removed.


    Drilling liquid cleaner is fixed drilling liquid solids control equipment consisting of desander,desilter and shale shaker. It integrates the performance of aforesaid three equipments, featuring large disposal capacity, rapid treatment speed, less energy consumption, occupying small space, etc. It receives the most welcome in the international drilling market.


    Main Features of TRQJ Series Mud Cleaner

    1. Mechanical Deck is adjustable during operation, reliable performance.
    2. Hook-strip shaker screens for fast screens changing with screens.
    3. Compact design with small footprint, with top feed and weir feed two option.
    4. Desander cones can be installed between one and three 10" desander cones, each cone can process 500 GPM and makes a separation between 45 and 75 μm.
    5. Polyurethane ( PU ) material, high-chromium cast iron or ceramic to make desander and desilter cones.
    6. Desilter cones can be installed between eight and twenty 4" or 5" desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 μm.

    Specification of TRQJ Series Mud Cleaner


    ModelTRQJ200×1S-100×4NTRQJ200×2S-100×8NTRQJ250×2S-100×12NTRQJ25×3S-100×20N
    Capacity60m³/h120m³/h240m³/h320m³/h
    Desander Cyclone Specs8"10"
    Desander Cyclone Qty1223
    Desilter Cyclone Specs4"
    Desilter Cyclone Qty481220
    Working Pressure0.25~0.4mpa
    Inlet SizeDN125mmDN150mmDN150mmDN200mm
    Outlet SizeDN150mmDN200mmDN200mmDN250mm
    Separation Point15μm~44μm
    Bottom ShakerTRZS60TRZS752TRZS752TRZS703
    Dimension1.51×1.16×2.0m1.835×1.23×1.81m1.835×1.23×1.81m2.42×2.15×2.15m
    Weight600kg980kg1250kg2350 kg
    RemarkAll mud cleaners could be customized without bottom shaker.


    Application


    TRQJ series mud cleaner is now widely used in city bored piling, oil & gas drilling, tunneling construction, trenchless HDD, Drilling Waste Management, Oil Mud Seperation, Coal Bed Gas Solids Control System, environment protection, mining, Oil Sludge Dewatering Systems, Water Drilling etc.


    Competitive Advantages
    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
