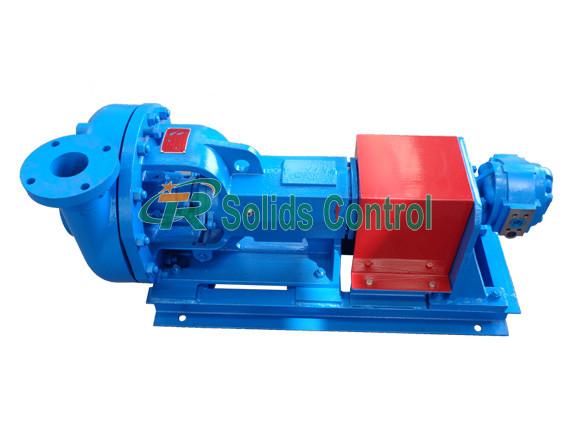

    Horizontal Centrifugal Slurry Pump Spare Parts Long Life 1696×568×805mm

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRSB5*4-13J
    Certification : API Certificate, ISO Certified
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 20000 Pcs / Month
    Delivery Time : 7 days after receiving deposit
    • Product Details
    • Company Profile

    Horizontal Centrifugal Slurry Pump Spare Parts Long Life 1696×568×805mm

    Long Life Low Price Horizontal Centrifugal Slurry Pump Spare Parts with Short Delivery


    Product Introduction


    Centrifugal Pump is also called as Sand Pump, Feeding Pump, Mixing Pump, and Filling Pump. It is the ideal matching equipment to provide impetus for desander, desilter and Jet mud mixer. Centrifugal pump can also be an assistant mud infusion pump and trip pump at well head location. TR centrifugal pump can realize the quick positioning and installation.


    Centrifugal sand Pump is used for transporting drilling mud in the field. It is used as the feeding pump for desander, desilter, or as mixing pump for jet mud mixer. This kind of pump can be used as trip pump and supercharging pump for rig mud pump.


    Advantages of TRLSB Series Sand Pump:

    • Thicker pump shell.
    • Bearings are imported SKF. High quality.
    • High anti-corrosive alloy material mechanical seal. More durable and longer service life.
    • Bearing lubrication can be oil and grease. Make bearing more adaptable and long life.
    • Pump shell using alloy gray iron, longer life.
    • Selection of alloy cast iron impeller, greater resistance to corrosion.
    • Interchangeable with international brands.

    Specification of TR Drilling Centrifugal Pump


    ModelPowerFlowLift(m)EfficiencyNPSHElectric
    TRSB8×6-14J75KW320m3/h40m65%550HZ
    TRSB8×6-12J355m3/h43m66%4.860HZ
    TRSB8×6-13J55KW290m3/h33m64%5.550HZ
    TRSB6×5-12J196m3/h48m61%360HZ
    TRSB6×5-13J45KW180m3/h34m60%350HZ
    TRSB5×4-14J149m3/h61m58%4.660HZ
    TRSB6×5-12J37KW160m3/h30m60%350HZ
    TRSB5×4-12J112m3/h45m58%4.660HZ
    TRSB6×5-11J30KW120m3/h21m62%2.550HZ
    TRSB5×4-12J112m3/h37m57%4.660HZ
    TRSB5×4-12J22KW90m3/h30m56%4.550HZ
    TRSB5×4-10J105m3/h30m57%4.260HZ
    TRSB5x4-11J18.5KW90m3/h24m56%4.550HZ
    TRSB4x3-12J55m3/h46m48%460HZ
    TRSB4x3-13J15KW50m3/h40m48%4.550HZ
    TRSB4x3-11J54m3/h35m47%460HZ
    TRSB4x3-12J11KW45m3/h30m47%450HZ
    TRSB3x2-12J28m3/h45m40%3.160HZ
    TRSB3x2-12J7.5KW45m3/h24m46%450HZ
    TRSB3x2-11J25m3/h35m41%3.160HZ
    TRSB3x2-11J5.5KW20m3/h23m39%350HZ


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
