    Large Capacity Linear Motion Shale Shaker For Trenchless Horizontal Direction Drilling

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRZS585
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 3000 Sets / Month
    Delivery Time : Within 15 days after deposit
    • Product Details
    • Company Profile

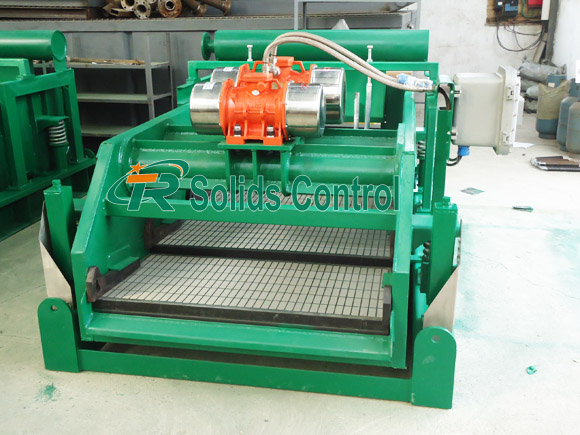

    Large Capacity Linear Motion Shale Shaker For Trenchless Horizontal Direction Drilling

    Large Capacity Linear Motion Shale Shaker For Trenchless Horizontal Direction Drilling


    Product Introduction


    Drilling Mud Shale shaker is the first stage of solids control equipment in drilling purification system. It can remove cuttings above 75 μm brought from the drilling well to leave the liquid with smaller particles into the tanks below, which will flow into next grade solids control equipment for further treatment. It's used in many industries, such as oil and gas drilling, coal cleaning(CBM), horizontal directional drilling (HDD), mining, etc.


    Drilling shale shaker was originally mainly used to remove large solid particles in drilling mud, thereby ensuring the normal use of subsequent mud purification and separation equipment. At present shale shaker has been given a new mission, namely as a basic equipment in drilling waste management. It’s used as a primary separation equipment in sludge treatment system.


    Design Features of Our Mud Shale Shaker:


    • Hopper type feed mode reduces feed speed.
    • Screen box angle is mechanical and adjustable.
    • Martin or OLI vibration motor.
    • Wedge-type compaction device facilitates fast replacement of screen.
    • Schneider or Siemens electrical components.
    • Overall heat treatment, long time work.
    • Vibration strength is 7.5G, adjustable.

    Technical Parameters of TR Mud Shale Shaker


    (Model)TRPS703TRPS585-4TRZS703TRZS585
    Vibration MotionBalanced Elliptical MotionLinear Motion
    Treatment Capacity130m³/h140m³/h120m³/h130m³/h
    Motor Power1.94+1.0kw1.94+1.0kw1.5KW×21.72KW×2
    Screen Specs.(700×1250mm)×3(585×1165mm)×4(700×1250mm)×3(585×1165mm)×4
    Screen Area2.6m²2.7m²2.6m²2.7m²
    Vibration Strength≤7.1G≤7.1G≤7.1G≤7.1G
    Double Amplitude7mm7mm6mm6mm
    Deck Adjustment-1°~+5°-1°~+5°-1°~+5°-1°~+5°
    Ex StandardExdIIBt4 / IECEX / A-TEX
    Weight1630kg1618kg1620kg1600kg
    Dimension2770×1785×1690mm2966×1600×1280mm2770×1785×1690mm2966×1600×1280mm
    RemarkAbove data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
