Brand Name : | TR Solids Control |
Model Number : | TRPS752 |
Certification : | API certificate, ISO9001 certificate |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
Supply Ability : | 30 Sets / Month |
Delivery Time : | Within 10 days after deposit |

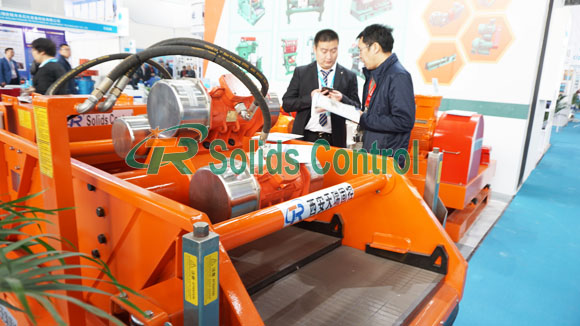

Hopper Type Feed Mode Linear Motion Shale Shaker For Mud Recycling System
Main Introduction
Shale shaker is the first phase solids control equipment in oil drilling mud solids control system. It's the important equipment in the mud recycling system as well. Generally, there are single shale shaker, duplex shale shaker and triple shale shaker. TR Solids Control can provide the shale shaker in different treatment capacity with customized service as per clients’requirement.
TR Solids Control can manufacture balanced elliptical shale shaker, high quality liner shale shaker, drying shale shaker. We could meet customers' variable requirements. Clients feedback proves the advantages of our shale shaker in the international market. Welcome to contact with us for more details. Thanks!
Main features of our drilling shale shaker
Technical Specification of TR Shale Shaker
(Model) | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
Vibration Motion | Balanced Elliptical Motion | Linear Motion | ||
Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
Double Amplitude | 7mm | 7mm | 6mm | 6mm |
Deck Adjustment | -1°~+5° | -1°~+5° | -1°~+5° | -1°~+5° |
Ex Standard | ExdIIBt4 / IECEX / A-TEX | |||
Weight | 1630kg | 1618kg | 1620kg | 1600kg |
Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. |
TR mud shale shaker is widely used in these industries: Trenchless HDD & Tunnelling, Drilling Waste Management, Oil and Gas Drilling, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling. Our shale shaker has API & ISO certificates. We welcome your inquiry!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international
brands.
6. Our products have been exported to Argentina, Egypt, US,
Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India,
Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids
Control.
![]() |
