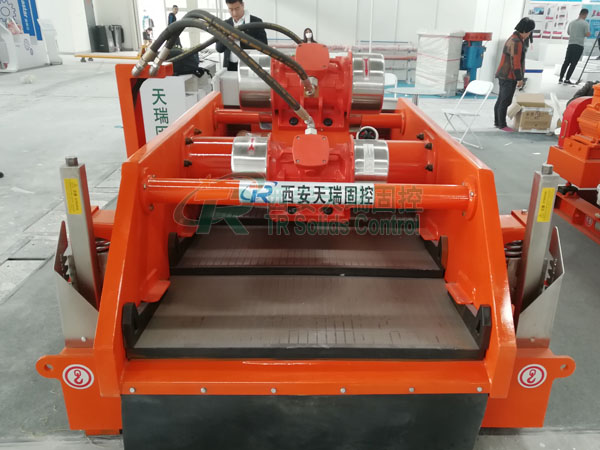

    130m3/H Oil Rig Mud System Linear Motion Shale Shaker Overall Heat Treatment

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRZS585
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 3000 Sets / Month
    Delivery Time : Within 15 days after deposit
    • Product Details
    • Company Profile

    130m3/H Oil Rig Mud System Linear Motion Shale Shaker Overall Heat Treatment

    130m3/H Oil Rig Mud System Linear Motion Shale Shaker Overall Heat Treatment


    Brief Introduction


    Shale shaker was originally mainly used to remove large solid particles in drilling mud, thereby ensuring the normal use of subsequent mud purification and separation equipment. At present, shale shaker has been given a new mission, namely as a basic equipment in drilling waste management. Also, it's used as a primary separation equipment in sludge treatment system.


    We can supply customers with both linear motion shakers and elliptical motion shakers for HDD and trenchless. Some of our shale shakers use "J" hook screen technology that can save the customers a lot of money over the service life of shaker. Linear motion shale shaker has two vibratory motors while elliptical motion shale shaker which is newly designed only has one vibratory motor. This creats a longer service time and providing a better value for our customer.


    Advantages of Our Mud Shale Shaker:


    • Martin or OLI vibration motor.
    • Hopper type feed mode reduces feed speed.
    • Vibration strength is 7.5G, adjustable.
    • Screen box angle is mechanical and adjustable.
    • Wedge-type compaction device facilitates fast replacement of screen.
    • Schneider or Siemens electrical components.
    • Overall heat treatment, long time work.

    Technical Specifications of TR Shale Shaker


    (Model)TRPS703TRPS585-4TRZS703TRZS585
    Vibration MotionBalanced Elliptical MotionLinear Motion
    Treatment Capacity130m³/h140m³/h120m³/h130m³/h
    Motor Power1.94+1.0kw1.94+1.0kw1.5KW×21.72KW×2
    Screen Specs.(700×1250mm)×3(585×1165mm)×4(700×1250mm)×3(585×1165mm)×4
    Screen Area2.6m²2.7m²2.6m²2.7m²
    Vibration Strength≤7.1G≤7.1G≤7.1G≤7.1G
    Double Amplitude7mm7mm6mm6mm
    Deck Adjustment-1°~+5°-1°~+5°-1°~+5°-1°~+5°
    Ex StandardExdIIBt4 / IECEX / A-TEX
    Weight1630kg1618kg1620kg1600kg
    Dimension2770×1785×1690mm2966×1600×1280mm2770×1785×1690mm2966×1600×1280mm
    RemarkAbove data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
