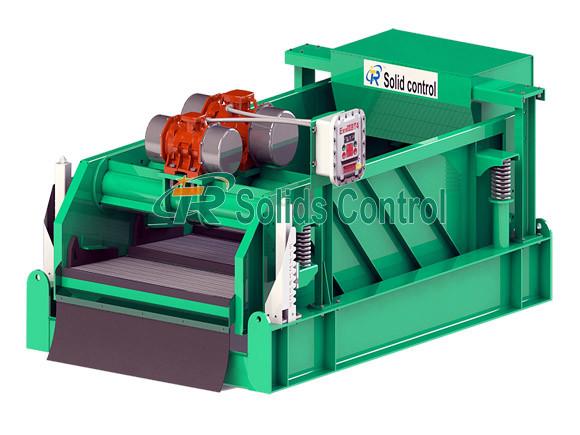

    API Certificate Drilling Fluid Equipment / Mud Screen Shaker Separator 900kg

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRZS752
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 30 Sets / Month
    Delivery Time : Within 15 days after deposit
    • Product Details
    • Company Profile

    API Certificate Drilling Fluid Equipment / Mud Screen Shaker Separator 900kg

    API Certificate Drilling Fluid Equipment / Mud Screen Shaker Separator 900kg


    Product Introduction


    Shale shaker is the first phase solids control equipment in drilling fluids processing system. It's known as key solids control equipment in drilling mud system. Shale shaker decides performance of the whole solids control system. TR can design double shakers and triplicate shakerson single skid according to clients’special requirements. Besides, we supply relevant connecting manifold, according to current industry situation.


    TR Solids Control can manufacture balanced elliptical shale shaker, high quality liner shale shaker, and drying shale shaker. We could meet customers' variable requirements. Clients feedback proves the advantages of our shale shaker in the international market. Welcome to contact with us for more details.


    Advantages of our drilling shale shaker

    1. Martin or OLI vibration motor.
    2. Vibration strength is 7.5G, adjustable.
    3. Hopper type feed mode reduces feed speed.
    4. Overall heat treatment, long time work.
    5. Schneider or Siemens electrical components.
    6. Screen box angle is mechanical and adjustable.
    7. Wedge-type compaction device facilitates fast replacement of screen.

    Technical Parameters of TR Shale Shaker


    (Model)TRPS703TRPS585-4TRZS703TRZS585
    Vibration MotionBalanced Elliptical MotionLinear Motion
    Treatment Capacity130m³/h140m³/h120m³/h130m³/h
    Motor Power1.94+1.0kw1.94+1.0kw1.5KW×21.72KW×2
    Screen Specs.(700×1250mm)×3(585×1165mm)×4(700×1250mm)×3(585×1165mm)×4
    Screen Area2.6m²2.7m²2.6m²2.7m²
    Vibration Strength≤7.1G≤7.1G≤7.1G≤7.1G
    Double Amplitude7mm7mm6mm6mm
    Deck Adjustment-1°~+5°-1°~+5°-1°~+5°-1°~+5°
    Ex StandardExdIIBt4 / IECEX / A-TEX
    Weight1630kg1618kg1620kg1600kg
    Dimension2770×1785×1690mm2966×1600×1280mm2770×1785×1690mm2966×1600×1280mm
    RemarkAbove data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
