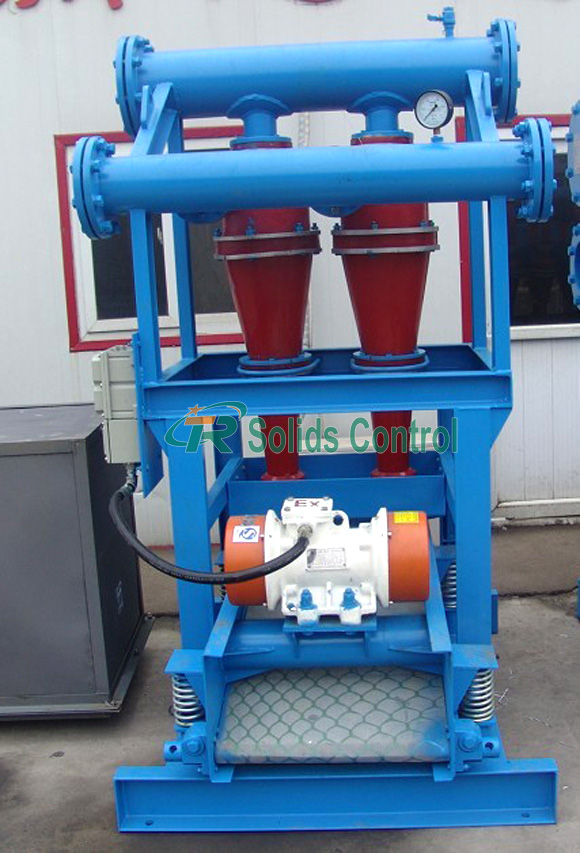

    Solid Control Drilling Mud Desander 200 M3/H Capacity 1510 * 1360 * 2250mm

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRCS250-2S
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 200 Pcs / Month
    Delivery Time : Within 20 days after deposit
    • Product Details
    • Company Profile

    Solid Control Drilling Mud Desander 200 M3/H Capacity 1510 * 1360 * 2250mm

    Solid Control Drilling Mud Desander 200 M3/H Capacity 1510 * 1360 * 2250mm


    Main Profile


    Drilling mud desander is a kind of solid control equipment, which is commonly used in oil and gas field for drilling rigs. Drilling mud desander can be widely applied in the triple-process of the drilling fluid and when it is used efficiently, the desanders can effectively clear the solid-phase granules with diameter of more than 30 microns in the drilling fluid. It is one indispensable device for stabilizing and adjusting the drilling fluid technical parameters, suitable for those drillers as ZJ70, ZJ50 and ZJ40. And it can be used together with the sealed circulatory system of the drilling fluid.

    TRCS series mud desander is important equipment for drilling liquid solid control. It is mainly used for the second phase purification of drilling liquid. It removes nocuous solid, stabilizes drilling liquid properties and improves drilling efficiency. The hydrodynamic cyclone of the desander is made of wear resistant cast iron. It is reliable, effective and serves long. The content of sand after the desander is controlled below 0.15%.


    Key Features of TR Mud Desander

    1. Internation brand vibrating motor, Martin or Oli Motor.
    2. Replaceable hydrocyclones.
    3. Flexible fast connection are available for user assembly.
    4. Compact design with small footprint.
    5. Pure polyurethane or high-chromium for hydrocyclones.
    6. Flexible options for 1, 2 or 3 pieces of 10" or 12" cones for different capacities.
    7. Clamp connection for hydrocyclones installation, easy to dismantle and replace.

    Parameters of TRCS Series mud desander


    ModelTRCS200-1S/2STRCS250-1S/2STRCS250-3STRCS300-1S/2S
    Capacity60m3/120m3/h100m3/200m3/h300m3/h120m3/240m3/h
    Cyclone Specs8”10”10”12”
    Cyclone Qty1nos/2nos1nos/2nos3nos1nos/2nos
    Working Pressure0.25-0.4Mpa
    Inlet SizeDN125mmDN150mmDN150mmDN150mm
    Outlet SizeDN150mmDN200mmDN200mmDN200mm
    Separation Point45μm -75μm
    Bottom ShakerTRTS60TRTS60TRZS752TRZS752
    Dimension1510*1160*2000mm1510*1360*2250mm1835*1230*1810mm1835*1230*1810mm
    Weight570kg/620kg670kg/760kg1300kg1380kg
    RemarkAll desander could be customized without bottom shaker.


    Application


    TR Drilling Mud Desander is widely used in trenchless HDD, Drilling Waste Management, oil & gas drilling, city bored piling, tunneling construction, mining, Oil Mud Seperation, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, environment protection, Water Drilling etc. In addition, we supply other solid control equipment like shale shaker, mud cleaner, decanter centrifuge, jet mud mixer, desilter, vertical cutting dryer and so on.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
