    High Efficiency Sand Removal System Replaceable Hydrocyclones For Oil Gas Drilling

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRCS250-2S
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 200 Pcs / Month
    Delivery Time : Within 20 days after deposit
    • Product Details
    • Company Profile

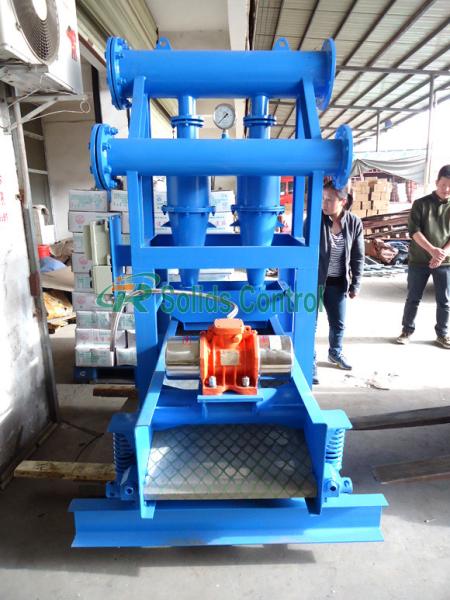

    High Efficiency Sand Removal System Replaceable Hydrocyclones For Oil Gas Drilling

    High Efficiency Sand Removal System Replaceable Hydrocyclones For Oil Gas Drilling


    Main Introduction


    Mud Desander is important equipment for drilling liquid solid control. It is mainly used for the second phase purification of drilling liquid. It removes nocuous solid, stabilizes drilling liquid properties and improves drilling efficiency. The hydrodynamic cyclone of the desander is made of wear resistant cast iron. It is reliable, effective and serves long. The content of sand after the desander is controlled below 0.15%.

    Drilling mud desander has already been one of our TR’s main products that ever requested very often from clients. TRCS series desander manufactured by TR Solids Control overcomes the shortcomings of the original desanding process. It consists of inlet pipe, desanding hydrocyclone, underflow shaker and discharge port. TR’s desander is with advantages of high quality hydrocyclones, large capacity, small noise, strong separation ability, long service time and easy maintenance. They are getting more and more attention from clients.

    Characterstics of TRCS Series Mud Desander

    1. Internation brand vibrating motor, Martin or Oli Motor.
    2. Flexible fast connection are available for user assembly.
    3. Pure polyurethane or high-chromium for hydrocyclones.
    4. Replaceable hydrocyclones.
    5. Compact design with small footprint.
    6. Flexible options for 1, 2 or 3 pieces of 10" or 12" cones for different capacities.
    7. Clamp connection for hydrocyclones installation, easy to dismantle and replace.

    Specifications of TRCS Series drilling desander


    ModelTRCS200-1S/2STRCS250-1S/2STRCS250-3STRCS300-1S/2S
    Capacity60m3/120m3/h100m3/200m3/h300m3/h120m3/240m3/h
    Cyclone Specs8”10”10”12”
    Cyclone Qty1nos/2nos1nos/2nos3nos1nos/2nos
    Working Pressure0.25-0.4Mpa
    Inlet SizeDN125mmDN150mmDN150mmDN150mm
    Outlet SizeDN150mmDN200mmDN200mmDN200mm
    Separation Point45μm -75μm
    Bottom ShakerTRTS60TRTS60TRZS752TRZS752
    Dimension1510*1160*2000mm1510*1360*2250mm1835*1230*1810mm1835*1230*1810mm
    Weight570kg/620kg670kg/760kg1300kg1380kg
    RemarkAll desander could be customized without bottom shaker.


    Main Application


    TR Mud Desander is currently used in microtunneling, oil & gas drilling, Drilling Waste Management, trenchless HDD, city bored piling, tunneling construction, Oil Sludge Dewatering Systems,mining, Oil Mud Seperation, Coal Bed Gas Solids Control System, environment protection, Water Drilling etc. Our mud desander has good price and short delivery. Welcome your inquiry and consulting!


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
