    Oil Drilling Solid Control Desanding System Separation Point 45 - 75μM

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRCS200-2S
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 200 Pcs / Month
    Delivery Time : Within 20 days after deposit
    • Product Details
    • Company Profile

    Oil Drilling Solid Control Desanding System Separation Point 45 - 75μM

    Oil Drilling Solid Control Desanding System Separation Point 45 - 75μM


    Introduction


    Mud desander is the second phase cleaning for a whole solids control system, It sits on mud tank for separate drilling cuttings 47-76 micron and above by centrifugal force. The untreated mud will feed into desander cone at the horizontal inlet at pressure, the pressure and weight will help solids particles moving beside cone wall and drop down, fluids particles will be press on top and over flow away through pipeline. There can be a shaker to collect solids particles from desander nozzle or drop onto a hoper directly.

    TR Desander cyclone uses high chromium cast iron or pure polyurethane material, customers can choose independently. We can exchange it with an international brand. The cyclone has long lifetime and light weight, and easy to maintain. High separation ability and wide separation range. It can remove solid particles from 45 um to 1mm. Cyclone underflow is pressurized umbrella “wet bottom” to quickly discharge the particles in the separation zone, reducing the blocking probability.


    Operation Mechanism

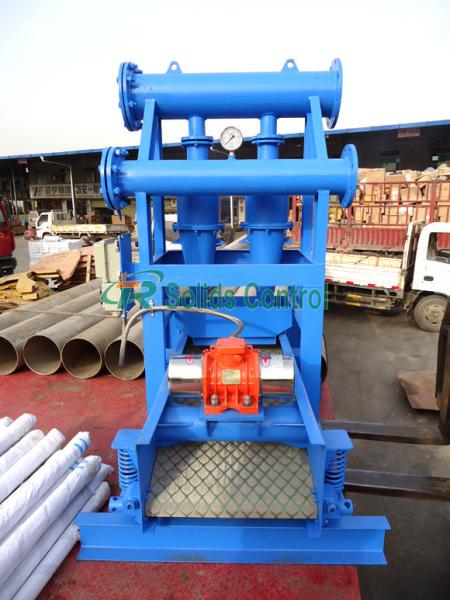

    TR mud Desander includes two 12-inch(305-mm) diameter polyurethane hydroclones slant mounted over the shaker. Each desander clone includes four replaceable wear resistant polyurethane sections that are joined together with quick release stainless steel clamps. The desander is furnished with an 8-inch(203-mm) diameter feed manifold and a 10-inch (254-mm) diameter discharge manifold and a 0-60 psi (4.1-bar) pressure gauge. The desander also includes a solids discharge trough to distribute the hydroclone underflow evenly onto the screening surface.


    Main Specifications of our mud desander


    ModelTRCS200-1S/2STRCS250-1S/2STRCS250-3STRCS300-1S/2S
    Capacity60m3/120m3/h100m3/200m3/h300m3/h120m3/240m3/h
    Cyclone Specs8”10”10”12”
    Cyclone Qty1nos/2nos1nos/2nos3nos1nos/2nos
    Working Pressure0.25-0.4Mpa
    Inlet SizeDN125mmDN150mmDN150mmDN150mm
    Outlet SizeDN150mmDN200mmDN200mmDN200mm
    Separation Point45μm -75μm
    Bottom ShakerTRTS60TRTS60TRZS752TRZS752
    Dimension1510*1160*2000mm1510*1360*2250mm1835*1230*1810mm1835*1230*1810mm
    Weight570kg/620kg670kg/760kg1300kg1380kg
    RemarkAll desander could be customized without bottom shaker.


    Key Application


    Our Mud Desander is widely used in non-digging industry, tunneling construction, oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, Oil Sludge Dewatering Systems, Oil Mud Seperation, mining, Coal Bed Gas Solids Control System, environment protection, Water Drilling etc. At present, our mud desander has exported to many countries like Thailand, Canada, Oman, Dubai, Vietnam, Egypt, Germany, US, Greece etc. We welcome your inquiry!


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
