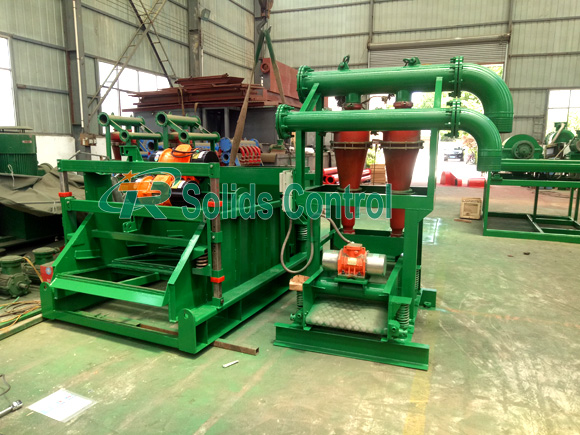

    Compact Oil Drilling Mud Desander With Bottom Shale Shaker DN125mm Inlet Diameter

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRCS200-1S/2S
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 200 Pcs / Month
    Delivery Time : Within 20 days after deposit
    • Product Details
    • Company Profile

    Compact Oil Drilling Mud Desander With Bottom Shale Shaker DN125mm Inlet Diameter

    Compact Oil Drilling Mud Desander With Bottom Shale Shaker DN125mm Inlet Diameter


    Introduction


    Mud Desander is important equipment for drilling liquid solid control. It is mainly used for the second phase purification of drilling liquid. It removes nocuous solid, stabilizes drilling liquid properties and improves drilling efficiency. The hydrodynamic cyclone of the desander is made of wear resistant cast iron. It is reliable, effective and serves long. The content of sand after the desander is controlled below 0.15%.


    Desander, as stated earlier, have no moving parts. Micro fine separators are able to remove around 50 percent of those solids within the 10-15 micron range at a flow rate of 15 gal/min. Desander is typically positioned next-to-last in the arrangement of solids control equipment, with decanter centrifuge as the subsequent processing unit. Desander are preceded by gas busters, gumbo removal equipment (if utilized), shale shakers, mud cleaner (if utilized) and vacuum degasser. Desander is widely used in oilfield drilling.


    Key Characterstics of TRCS Series Mud Desander

    1. Compact design with small footprint.
    2. Flexible fast connection are available for user assembly.
    3. Pure polyurethane or high-chromium for hydrocyclones.
    4. Clamp connection for hydrocyclones installation, easy to dismantle and replace.
    5. Internation brand vibrating motor, Martin or Oli Motor.
    6. Replaceable hydrocyclones.
    7. Flexible options for 1, 2 or 3 pieces of 10" or 12" cones for different capacities.

    Technical Parameter of Mud Desander


    ModelTRCS200-1S/2STRCS250-1S/2STRCS250-3STRCS300-1S/2S
    Capacity60m3/120m3/h100m3/200m3/h300m3/h120m3/240m3/h
    Cyclone Specs8”10”10”12”
    Cyclone Qty1nos/2nos1nos/2nos3nos1nos/2nos
    Working Pressure0.25-0.4Mpa
    Inlet SizeDN125mmDN150mmDN150mmDN150mm
    Outlet SizeDN150mmDN200mmDN200mmDN200mm
    Separation Point45μm -75μm
    Bottom ShakerTRTS60TRTS60TRZS752TRZS752
    Dimension1510*1160*2000mm1510*1360*2250mm1835*1230*1810mm1835*1230*1810mm
    Weight570kg/620kg670kg/760kg1300kg1380kg
    RemarkAll desander could be customized without bottom shaker.


    Main Application


    TR Mud Desander is now used in city bored piling, oil & gas drilling, trenchless HDD, Drilling Waste Management, tunneling construction, mining, Oil Sludge Dewatering Systems, environment protection, Oil Mud Seperation, Coal Bed Gas Solids Control System, Water Drilling etc. Our mud desander conforms to API and ISO standard, we have exported to many countries like Vietnam, Egypt, Germany, UAE, Egypt, US etc.


    Competitive Advantages
    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
