    High Performance Oilfield Drilling Mud Desander 200 M3/H Capacity API Certificate

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRCS250-2S
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 200 Pcs / Month
    Delivery Time : Within 20 days after deposit
    • Product Details
    • Company Profile

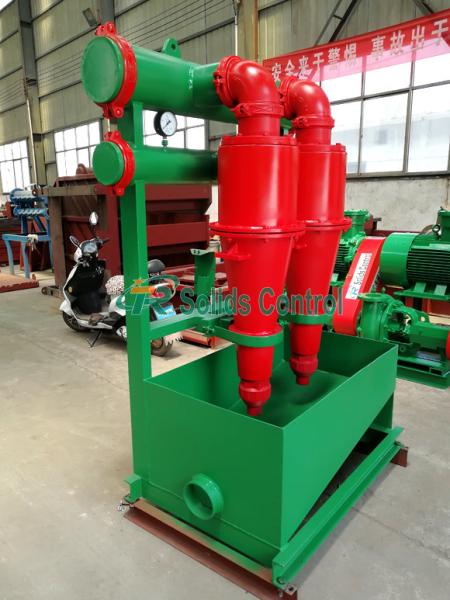

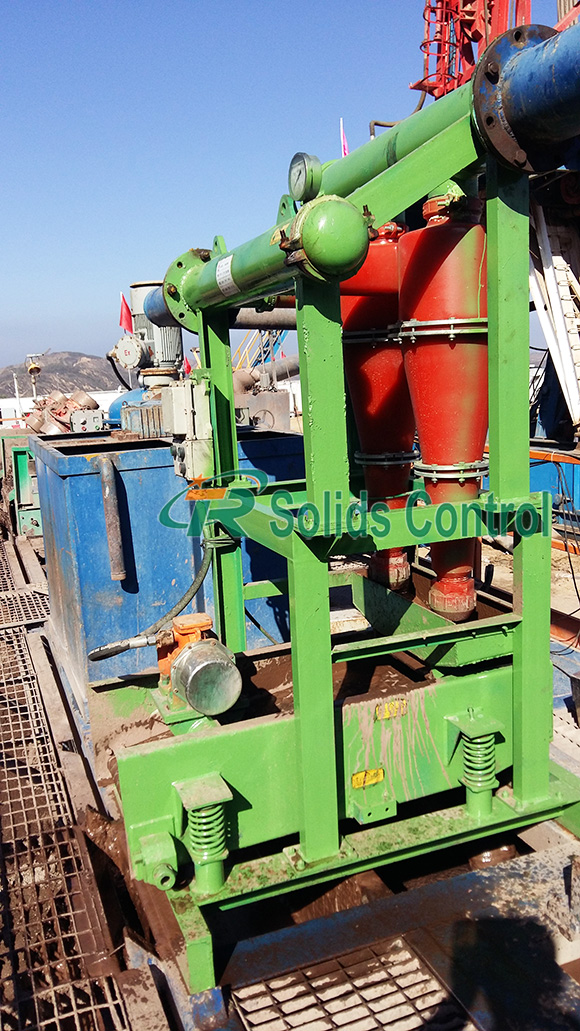

    High Performance Oilfield Drilling Mud Desander 200 M3/H Capacity API Certificate

    High Performance Oilfield Drilling Mud Desander 200 M3/H Capacity API Certificate


    Main Profile


    Mud Desander is the secondary solids control device for drilling fluids,it is mainly used to remove harmful solid particles with a particle size of 47-74μm in the drilling fluid.Using the principle of centrifugal sedimentation,the suspended particles can be separated from the liquid by centrifugal acceleration. As a solids control equipment of the second stage in drilling operation, desander is used to remove harmful solid particles of 40-74µm in drilling liquid. Suspending particles can be separated from the liquid under the centrifugal acceleration, by use of working principle of centrifugal subsidence.

    Mud desander is important equipment for drilling liquid solid control. It is mainly used for the second phase purification of drilling liquid. It removes nocuous solid, stabilizes drilling liquid properties and improves drilling efficiency. The hydrodynamic cyclone of the desander is made of wear resistant cast iron. It is reliable, effective and serves long. The content of sand after the desander is controlled below 0.15%.


    Main Benefits of Our Mud Desander

    1. Internation brand vibrating motor, Martin or Oli Motor.
    2. Compact design with small footprint.
    3. Pure polyurethane or high-chromium for hydrocyclones.
    4. Replaceable hydrocyclones.
    5. Flexible options for 1, 2 or 3 pieces of 10" or 12" cones for different capacities.
    6. Flexible fast connection are available for user assembly.
    7. Clamp connection for hydrocyclones installation, easy to dismantle and replace.

    Technical Data of TRCS Series mud desander


    ModelTRCS200-1S/2STRCS250-1S/2STRCS250-3STRCS300-1S/2S
    Capacity60m3/120m3/h100m3/200m3/h300m3/h120m3/240m3/h
    Cyclone Specs8”10”10”12”
    Cyclone Qty1nos/2nos1nos/2nos3nos1nos/2nos
    Working Pressure0.25-0.4Mpa
    Inlet SizeDN125mmDN150mmDN150mmDN150mm
    Outlet SizeDN150mmDN200mmDN200mmDN200mm
    Separation Point45μm -75μm
    Bottom ShakerTRTS60TRTS60TRZS752TRZS752
    Dimension1510*1160*2000mm1510*1360*2250mm1835*1230*1810mm1835*1230*1810mm
    Weight570kg/620kg670kg/760kg1300kg1380kg
    RemarkAll desander could be customized without bottom shaker.


    Main Applications


    Our TR Mud Desander is currently used in Drilling Waste Management, oil & gas drilling, trenchless HDD, city bored piling, tunneling construction, mining, Oil Mud Seperation, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, environment protection, Water Drilling etc. If you have any inquiry of mud desander, welcome to contact with us. Thanks.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
