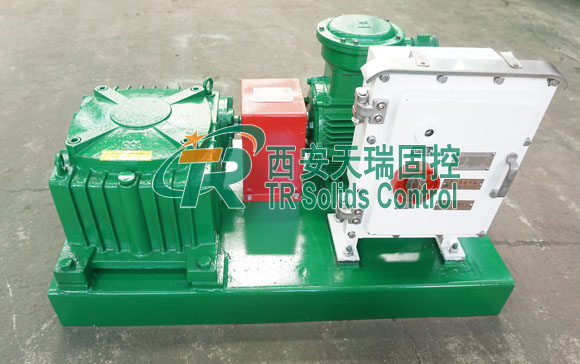

    Solid Control Oilfield Agitator With Gearbox Good Performance 250 Kg Weight

    Good Performance Solids Control Oilfield Drilling Mud Agitator with Gearbox


    Introduction


    Drilling fluid mud agitator is part of the drilling fluids solids control equipment, which is mainly used to agitate and mix the drilling mud to prevent solids particles from depositing in the circulating tank and to stabilize the performance of drilling fluids. The motor and speed reducer, speed reducer and impeller shaft are connected by steel coupling.


    Our TRJBQ series mud agitator is relatively low shear and low energy solids control equipment, so it’s easy to operate and inexpensive to maintain. This will ensure that mud additives are homogeneously mixed to prevent dead spots. TR Solids Control manufactures JBQ series mud agitator with reasonable price and superior quality. Besides, our shale shaker, mud cleaner, vacuum degasser, centrifugal pump and shaker screens are popular among clients. We are sincerely looking forward to hearing from you.


    Main Advantages of our drilling mud agitator:

    1. Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
    2. Small size, compact structure.
    3. Running smoothly, small noise, long usage life, less wearing parts, and cost-saving.
    4. Good heat exchange performance makes agitator faster cool down.
    5. The gearbox use worm gear. More reliable.
    6. Power available ranging from 3 to 22KW.

    Technical Parameter of Our Mud Agitator


    ModelMotor PowerImpeller SpeedImpeller DiameterImpeller Qty.Explosion-proof StandardWeightDimension
    TRJBQ33kw60/72r/min600mm1

    ExdIIBt4/IECEX/A-TEX

    190kg909×525×527mm
    TRJBQ5.55.5kw600mm1250kg1072×610×588mm
    TRJBQ7.57.5kw650mm2380kg1157×670×607mm
    TRJBQ1111kw800mm2430kg1297×740×692mm
    TRJBQ1515kw950mm2480kg1330×890×747mm
    TRJBQ18.518.5kw1000mm2740kg1510×890×753mm
    TRJBQ2222kw1100mm2780kg1529×890×753mm
    RemarkAbove weight and dimension exclude mud agitator shaft.


    Packaging Details:


    1. Shalf and impeller fixed with iron frame/pallet.
    2. Load into the truck or large container.


    Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). TR Solids Control has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
