    Solid Control Drilling Fluids Jet Mud Mixer 180m3/H Capacity 45kw Motor Power

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRSLH150-40
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 5000 Sets Per Month
    Delivery Time : 15 days after deposit
    • Product Details
    • Company Profile

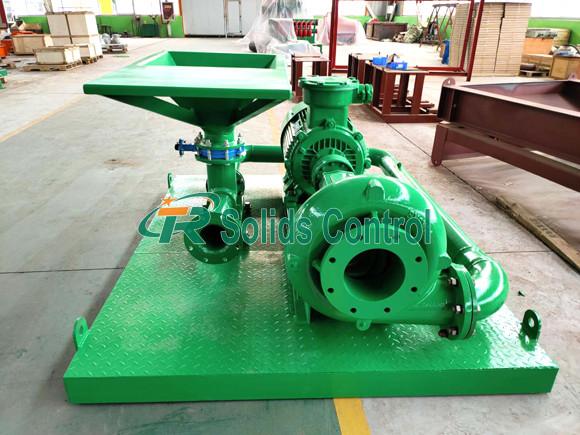

    Solid Control Drilling Fluids Jet Mud Mixer 180m3/H Capacity 45kw Motor Power

    Best Price Solid Control Drilling Fluids Jet Mud Mixer for Sale


    Key Introduction


    Jet Mud mixeris is a special equipment to prepare and increase the drilling fluids weight by adding and mixing bentonite, change the fluid density, change the mud density, viscosity, and dehydration. The effect is more prominent matching with Shear Pump. TRSLH series jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD).

    TR Solids Control is a professional manufacturer of jet mud mixer in China. Our jet mud mixer can be matched with other drilling solids control system. It’s safe and reliable, and easy to move. It can improve pressure head of mixed liquid, enhance dispersion effect of material, make the material recycle and mix enough in the mud tank.


    Design Characterstics of Our Jet Mud Mixer


    • It can be made Twin Jet Mud Mixers according to the user requirements.
    • The unit includes one sand pump, one jet mixing hopper
    • It is safe and stable and can be moved conveniently.
    • The effect is more prominent matching with Shear Pump.
    • It is designed for solids control bentonite mud mixer,drilling mud tank jet mixer.

    Main Parameters of Oilfield Drilling Jet Mud Mixer

    ModelTRSLH150-50TRSLH150-40TRSLH150-30TRSLH100
    Matched PumpTRSB8×6-13J(55kw)TRSB6×5-13J(45kw)TRSB5×4-14J(37kw)TRSB4X3-11J(15kw)
    Capacity240m3/h180m3/h120m3/h60m3/h
    Work Pressure0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa
    Inlet Diameter150mm150mm150mm100mm
    Nozzle Diameter50mm40mm30mm30mm
    Hopper Size750x750mm750x750mm600x600mm600x600mm
    Burden Speed≤100kg/min≤80kg/min≤60kg/min≤40kg/min
    Weight1600kg1450kg1300kg1100kg
    Dimension2200*1700*1200mm2200*1700*1200mm2000*1650*1100mm2000*1650*1100mm


    TR Solids Control is a professional supplier of various oilfield equipment, including oil drilling and solid control equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). TR Solids Control has become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

    Company Tenet

    Customer's satisfaction is the highest pursuit of TR Solids Control.
