    45kw Motor Power Jet Mud Mixer 150mm Inlet Diameter With 1450kg Weight

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRSLH150-40
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 5000 Sets Per Month
    Delivery Time : 15 days after deposit
    • Product Details
    • Company Profile

    45kw Motor Power Jet Mud Mixer 150mm Inlet Diameter With 1450kg Weight

    Oilfield Drilling Solid Control Jet Mud Mixer / Mixing Hopper


    Main Introduction

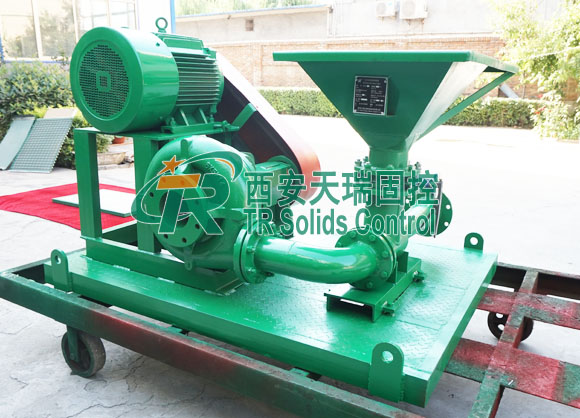

    TRSLH series jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base. Its hopper and centrifugal pump either can be combined to use or be installed separately.

    TRSL series mud hopper are welcomed by clients for good price and high performance. Also, we have short delivery and many models for you to choose from. Nowadays mud hopper is widely used in oil & gas drilling, horizontal directional drilling, tunnel & microtunnelling, shield construction, etc. Welcome your inquiry at any time! Jet Mud Mixer according to the user requirements.It is designed by solids control bentonite mud mixer,drilling mud tank jet mixer.


    Main Benefits of TR Jet Mud Mixer

    • It is safe and stable and can be moved conveniently.
    • The unit includes one sand pump, one jet mixing hopper
    • The effect is more prominent matching with Shear Pump.
    • It is designed for solids control bentonite mud mixer,drilling mud tank jet mixer.
    • It can be made Twin Jet Mud Mixers according to the user requirements.

    Parameters of TRSLH Series Jet Mud Mixer

    ModelTRSLH150-50TRSLH150-40TRSLH150-30TRSLH100
    Matched PumpTRSB8×6-13J(55kw)TRSB6×5-13J(45kw)TRSB5×4-14J(37kw)TRSB4X3-11J(15kw)
    Capacity240m3/h180m3/h120m3/h60m3/h
    Work Pressure0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa
    Inlet Diameter150mm150mm150mm100mm
    Nozzle Diameter50mm40mm30mm30mm
    Hopper Size750x750mm750x750mm600x600mm600x600mm
    Burden Speed≤100kg/min≤80kg/min≤60kg/min≤40kg/min
    Weight1600kg1450kg1300kg1100kg
    Dimension2200*1700*1200mm2200*1700*1200mm2000*1650*1100mm2000*1650*1100mm


    Main Application


    Our jet mud mixer is widely used in these industries: Trenchless HDD & Tunnelling, Oil and Gas Drilling, Drilling Waste Management, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling etc. TR jet mud mixer has exported to many countries like Vietnam, Thailand, Malaysia, US, Canada, Australia, Dubai, Egypt and so on. Welcome your inquiry!


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

    Company Tenet

    Customer's satisfaction is the highest pursuit of TR Solids Control.
