    11KW API Certified Mud Mixing Hopper 60m3/H Capacity TRSLH100 API Certificate

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRSLH100
    Certification : API Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 6000 Sets Per Month
    Delivery Time : 15 days after deposit
    • Product Details
    • Company Profile

    11KW API Certified Mud Mixing Hopper 60m3/H Capacity TRSLH100 API Certificate

    11KW API Certified Oilfield Drilling Jet Mud Mixer with High Qaulity


    Introduction


    Jet mud mixer is a combination of centrifugal pump and mixing hopper with pipelines. It is scientifically designed to be the optimal solution for mixing of both mud bulk material and mud additive chemicals into the drilling fluid. TRSLH series jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base. Its hopper and centrifugal pump either can be combined to use or be installed separately.


    TRSLH series jet mud mixer is matched with other drilling solids control system. It’s safe and reliable, and easy to move. It can enhance dispersion effect of material, improve pressure head of mixed liquid, make the material recycle and mix enough in the mud tank.


    Our jet mud mixer is widely used in these industries: Trenchless HDD & Tunnelling, Drilling Waste Management, Oil and Gas Drilling, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling.


    Key Benefits of Our Drilling Jet Mud Mixer

    1. The effect is more prominent matching with Shear Pump.
    2. It is safe and stable and can be moved conveniently.
    3. It is designed for solids control bentonite mud mixer,drilling mud tank jet mixer.
    4. It can be made Twin Jet Mud Mixers according to the user requirements.​
    5. The unit includes one sand pump, one jet mixing hopper

    Technical Specifications of Oilfield Jet Mud Mixer

    ModelTRSLH150-50TRSLH150-40TRSLH150-30TRSLH100
    Matching PumpTRSB8×6-13J(55kw)TRSB6×5-13J(45kw)TRSB5×4-14J(37kw)TRSB4X3-11J(15kw)
    Capacity240m3/h180m3/h120m3/h60m3/h
    Work Pressure0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa
    Inlet Diameter150mm150mm150mm100mm
    Nozzle Diameter50mm40mm30mm30mm
    Hopper Dimension750x750mm750x750mm600x600mm600x600mm
    Burden Speed≤100kg/min≤80kg/min≤60kg/min≤40kg/min
    Weight1600kg1450kg1300kg1100kg
    Dimension2200*1700*1200mm2200*1700*1200mm2000*1650*1100mm2000*1650*1100mm

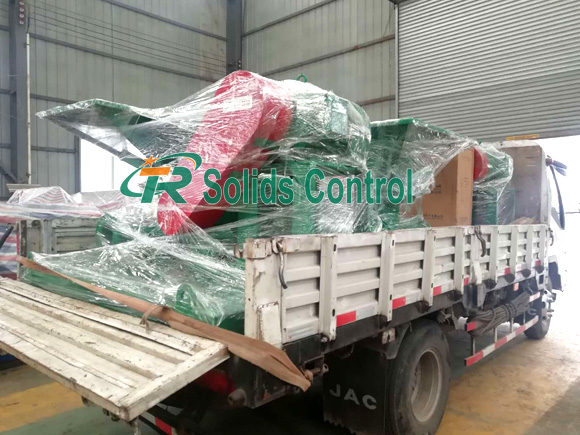

    Package & Shipment


    Packing: Wooden case, or customized packing.
    Delivery time: Stock or depending on quantity.
    Delivery: By truck, train, air, or sea.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

    Company Tenet

    Customer's satisfaction is the highest pursuit of TR Solids Control.
