    30m3/H High Speed Centrifugal Pump Feeding Pump 0.3Mpa Pressure Stable Performance

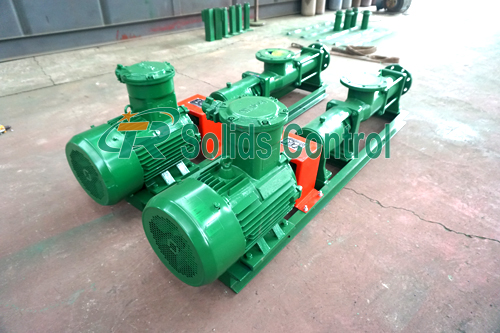

    30m3/h High Speed Decanter Centrifuge Feeding Pump Screw Pump


    Introduction


    Screw pump consists of suction, discharge, working part (Rotor and Stator), driving part, universal joint part seal assembly and bearing seat. The working part is composed of rotating eccentric rotor and stator. The rotor and stator have two contact points in every transverse section. These contact points from two sealing lines along the working parts of rotor (or stator).Thus comes into one or a few sealing chambers when the rotor rotating. The media entering the sealing chamber remove smoothly from suction end to discharge end along the sealing chamber. During the whole running, the pressure pulsation is very low which has no any effect upon the intrinsic construction of pumped media.


    Single screw pump is used in all fields widely to feel kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed.


    Feeding Medium


    This product is applicable for feeding medium which has the following properties:
    High solid content (diameter of the biggest particle is 50mm) or no solid content
    Medium with all viscosities (1mPas~3,000,000mPas)
    Medium that is easy to be generated and swelled
    Shearing sensitive medium
    Medium with erosion
    Medium with/without self lubrication
    Erosive medium (PH=0~14)
    Adhesive medium
    Toxicity hazard medium


    Main Specifications of TR Screw Pump


    ModelFlow RatePressurePower

    Inlet

    (Inch)

    Outlet

    (Inch)

    Ex Standard

    Weight

    (Kg)

    Dimension
    TRG10A-04010m³/h0.3Mpa4kw33ExdIIBt4/IECEX/A-TEX2452245×320×550mm
    TRG20A-05520m³/h5.5kw333232450×340×562mm
    TRG30A-07530m³/h7.5kw443862761×370×600mm
    TRG40A-11040m³/h11kw554543270×370×665mm
    TRG50A-11050m³/h11kw556083790×400×782mm
    TRG60A-15060m³/h15kw556493322×550×740mm
    TRG70A-22070m³/h22kw668753740×420×785mm
    TRG80A-22080m³/h22kw668753740×420×785mm
    TRG90A-22090m³/h22kw668753740×420×785mm
