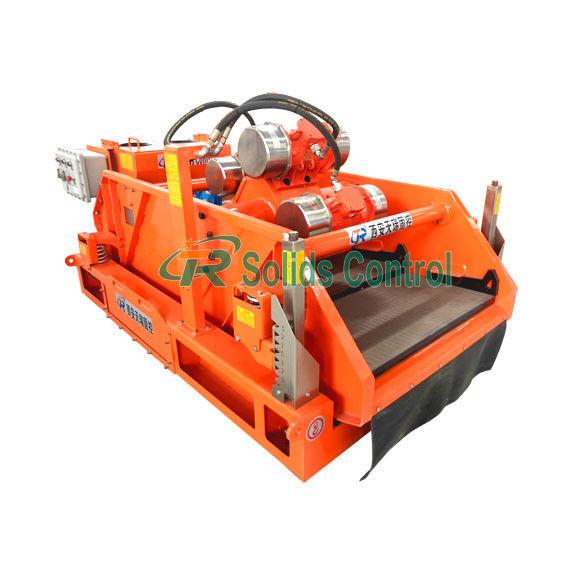

    Adjustable Dual Motion 110m3/H Oilfield Shale Shaker

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRZS584
    Certification : API certificate, ISO9001 certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 30 Sets / Month
    Delivery Time : Within 10 days after deposit
    • Product Details
    • Company Profile

    Adjustable Dual Motion 110m3/H Oilfield Shale Shaker

    Swaco Mongoose PT Shale Shaker with Three Motors


    Introduction


    Shale shaker is the first phase equipment to achieve the mud without landing. It can also be used at the first stage of mud recycling system in the oil drilling process. If you want to realize the mud does not fall, single equipment can not be achieved. It requires a variety of equipment combined together and treated systematically.


    TR Series shaker is a high strength vibrating screen independently in order to meet the domestic and international market demand and environmental protection requirements. Our drying shaker has been used in oil drilling field, shield construction site, city piling site. They could meet a variety of drill cuttings dewatering, screening, purification requirements. They ensure the continuous and effective treatment of the whole drilling shaving slurry, and have been highly recognized by customers.


    Main features of our mud shale shaker


    • Enhances cuttings processing volume.
    • G-forces linear motion up to 8.5G.
    • Hi-speed conveyance of cuttings.
    • Able to process heavier solids loads.
    • Shale shaker feeder can be weir feeder or box feeder.
    • AWD device is adjustable from -1°~5°.
    • Higher processing capacity.
    • Single side shale shaker screens tension system to easily change the screens.

    Technical Parameters of TR Shale Shaker


    (Model)TRPS584TRZS584
    Vibration MotionDual MotionDual Motion
    Treatment Capacity140m³/h110m³/h
    Motor Power1.72KW+1.72KW+0.75KW1.5KW+1.5KW+0.4KW
    Screen Specs.(585×1165mm)×4(585×1165mm)×3
    Screen Area2.7m²2.0m²
    Vibration Strength≤8.5G≤8.5G
    Double Amplitude7mm7mm
    Deck Adjustment-3°~+3°-3°~+3°
    Ex StandardExdIIBt4/IECEX/A-TEX
    Weight1700kg1500kg
    Dimension2600×1645×1138mm2100×1645×1380mm
    RemarkAbove data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3


    Application


    TRZS mud shale shaker is widely used in Drilling Waste Management, city bored piling, oil & gas drilling, tunneling construction, trenchless HDD, environment protection, Coal Bed Gas Solids Control System, micro-tunneling, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, Water Drilling etc.


    Competitive Advantages
    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.

    http://www.trsolidscontrol.com/
