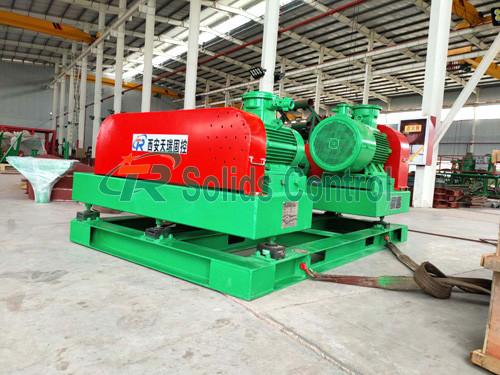

Oil Gas Decanter 70m3/H API Drilling Mud Centrifuge

    Buy cheap Oil Gas Decanter 70m3/H API Drilling Mud Centrifuge from wholesalers

    Buy cheap Oil Gas Decanter 70m3/H API Drilling Mud Centrifuge from wholesalers
    • Buy cheap Oil Gas Decanter 70m3/H API Drilling Mud Centrifuge from wholesalers
    • Buy cheap Oil Gas Decanter 70m3/H API Drilling Mud Centrifuge from wholesalers

    Oil Gas Decanter 70m3/H API Drilling Mud Centrifuge

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRLW450N-3
    Certification : API Certificate, ISO9001 Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 200 Sets / Month
    Delivery Time : Within 25 days after deposit
    • Product Details
    • Company Profile

    Oil Gas Decanter 70m3/H API Drilling Mud Centrifuge

    API Drilling Mud Centrifuge for Oil and Gas Drilling


    Main Introduction


    LW serial decanter centrifuge has two control models of variable frequency and work frequency, and has abovementioned various decanter centrifuges devoted for ocean drilling platforms. The work frequency-driven decanter centrifuge can change its speed through pulley and belt change, and the variable frequency horizontal centrifuge can realize infinite speed variation in a large scope and its control cabinet can directly display the parameters of work rev., work current and torque. The engine may be suitable for power grids of 50Hz and 60Hz.


    TR Decanter Centrifuge can meet with different requirements of mud treatment under various drilling conditions, that can do sedimentation and separation for particles more than 2 μm. After treatment, the mud can achieve ideal viscosity and proportion, resulting in better recycling, high efficiency, saving and environment protection.


    Mud decanting centrifuge can recycle the barite. It's important by cleaning out the small particle(2μm-7μm) from the drilling fluids to control fluids density and viscosity and improve the efficiency of well drilling.

    Brief Advantages of TRLW Serial Mud Centrifuge


    • Genuine NSK/FAG bearing.
    • Bowl Cylindrical and Conical section made from Duplex Stainless Steel.
    • Easily adjustable liquid discharge weir height for flexible application.
    • Other Parts of the bowl assembly material: stainless steel SS316L.
    • Screw protection: Ceramic Tiles for longer life and easier replacement.
    • Screw flow distribution port and bowl solids discharge port protected by tungsten carbide alloy.
    • Bowl assembly supported by tighten belt for protection of bearing inmoving.
    • Pressurized EX Proof VFD control cabinet.

    High Speed Decanting Centrifuge Technical Parameter


    ModelTRLW450N-3TRLW550N-1
    Bowl Diameter450mm550mm
    Bowl Length1600mm1800mm
    Max Capacity70m 3 /h90m 3 /h
    Rotary Speed2800r/min2600r/min
    G-Force25782711
    Main Motor Power45kW55kW
    Auxiliary Motor Power15kW22kw
    Separation point2~5μm2~5μm
    Weight4500kg5800kg
    Dimension2950x1860x1250mm3250x1960x1350mm

    (Note: Rotary speed can be adjustable as per user's requirements)



    Our Services:
    1. We are a professional and well-know manufacturer of decanter centrifuge with more than 10 years experience.
    2. Our factory has Automantic production line.
    3. We have quality management system and relevant certificates.
    4. 24 hours oversea service online.


    Packing & Delivery

    Packing: Wooden case, or customized packing.
    Delivery time: Stock or depending on quantity.
    Delivery: By express, truck, train, air, sea.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
