Oil Well Drilling 180m3/H DN150 Mud Mixing Machine

    Buy cheap Oil Well Drilling 180m3/H DN150 Mud Mixing Machine from wholesalers

    Buy cheap Oil Well Drilling 180m3/H DN150 Mud Mixing Machine from wholesalers
    • Buy cheap Oil Well Drilling 180m3/H DN150 Mud Mixing Machine from wholesalers
    • Buy cheap Oil Well Drilling 180m3/H DN150 Mud Mixing Machine from wholesalers
    • Buy cheap Oil Well Drilling 180m3/H DN150 Mud Mixing Machine from wholesalers

    Oil Well Drilling 180m3/H DN150 Mud Mixing Machine

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRSL150-40
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 5000pcs Per Month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    Oil Well Drilling 180m3/H DN150 Mud Mixing Machine

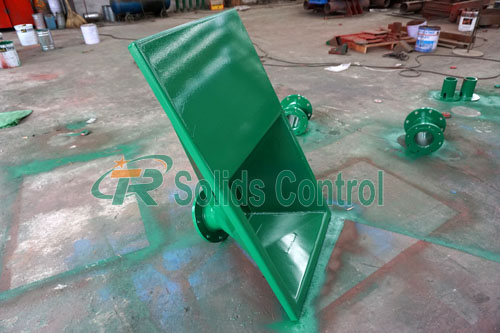

    Mud Mixing Hopper and Mud Mixing Machine


    Product Description


    Mobile hopper is a new mixer of additive material of drilling fluid. It is mainly used to mix drilling fluid and additives quickly and uniformly to improve drilling fluid's performance. It can mix powder material, and also suck liquid chemical additives.


    TRSL series mud hopper are welcomed by clients for good price and high performance. Also, we have short delivery and many models for you to choose from. Nowadays mud hopper is widely used in oil & gas drilling, horizontal directional drilling, tunnel & microtunnelling, shield construction, etc. Welcome your inquiry at any time! Jet Mud Mixer according to the user requirements.It is designed by solids control bentonite mud mixer,drilling mud tank jet mixer.


    Key Advantages of TRSL Mud Hopper:


    1.Quick Feeding: Strong suction with high speed jet nozzle.
    2.Strong Mixing Capability: Venturi tube in outlet.
    3.Easy Operation: Standard butterfly valve on inlet.
    4. The material of the drilling mud mixing hopper can be either Stainless Steel or carbon steel.
    5. Venturi type drilling mud mixing hopper and vortex type mud mixing hopper are both avaliable for option.


    Main Specifications of Jet Mud Mixer & Mud Hopper


    ModelTRSLH150-50TRSLH150-40TRSLH150-30TRSLH100
    Matched PumpTRSB8×6-13J(55kw)TRSB6×5-13J(45kw)TRSB5×4-14J(37kw)TRSB4X3-11J(15kw)
    Treating Capacity240m3/h180m3/h120m3/h60m3/h
    Working Pressure0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa
    Inlet Diameter150mm150mm150mm100mm
    Nozzle Diameter50mm40mm30mm30mm
    Hopper Size750x750mm750x750mm600x600mm600x600mm
    Burden Speed≤100kg/min≤80kg/min≤60kg/min≤40kg/min
    Weight1600kg1450kg1300kg1100kg
    Dimension2200*1700*1200mm2200*1700*1200mm2000*1650*1100mm2000*1650*1100mm


    China manufacturer TR Solids Control offer the world with drilling mud jet mud mixing.We are an exporter of drilling fluid jet mud mixing hopper for Indian, Russian,middle east.etc. We manufacture and design drilling bentonite mud mixing hopper unit,drilling mud tank jet mixer. We supplied to Oilfield Company of the Turkey, Venezuela, Indonesia, Russia, the United Arab Emirates,Turkey,and Morocco and United Arab Emirates etc.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

    Company Tenet

    Customer's satisfaction is the highest pursuit of TR Solids Control.
