    Solids Control 500GPM 120m3/H Drilling Mud Equipment

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRHDD-500
    Certification : API Certificate, ISO Certified
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 100 Set / Month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Solids Control 500GPM 120m3/H Drilling Mud Equipment

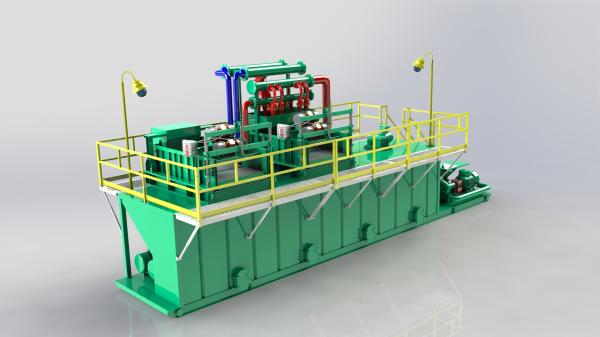

    120m3/h HDD Series Mud Recycling System


    Main Introduction


    HDD Mud Solids Control Syestm Equipment contains mud tanks, shale shaker, desander & desiler or mud cleanner, centrifuge, sand pumps, vacuum degasser, gas-liquid separator, shear pump, mud agitator, mud gun, flare ingition device, share shaker screen, jet mud mixer, etc.


    TR HDD mud recovery system can remarkably improve mud treatment efficiency, reduce mud cost of horizontal directional drilling and greatly increase rate of penetration.


    Features of HDD Mud Recycling System:


    1.Mud recycling and mud mixing included in high standard model, the combination including complete line of mud recycling and mud mixing with suitable mud storage.
    2.Compact design with minimum foot print. All equipments on tank top will sit on tank while local transport moving to allow fast moving and installation from jobsite to jobsite. Handrail and walkway can be folded on tank top or tank side with quick lock.
    3.Composite material screen install on shale shaker to help for a better performance and longer screen working life. Our shaker screen build as per API RP 13C regulation to meet worldwide client's requirement.
    4. Mud tank each corner weld container standard lifting lug for lifting tank and lock tank on trailer.
    5. Self clean mud tank or V type mud tank for easy cleaning, each mud tank compartment install clean gate with butterfly valve. Mud tank size and pipeline arrangement can be customized depending on jobsite requirement.


    Technical Specifications of TR HDD Mud Cleaning System


    ModelTRHDD-200ModelTRHDD-500TRHDD-1000
    Capacity200GPM (50m3 /h)Capacity500GPM (120m3 /h)1000GPM (240m3 /h)
    Shale ShakerTRZS752SShale ShakerTRZS703/TRZS585TRZS703/TRZS585

    Upper Screen Area

    0.875m2

    Screen Area

    2.7m22X2.7m2

    Upper Screen Area

    1.35m2

    Mud Cleaner

    TRQJ250X1S-100X8NTRQJ250X2S-100X12N

    Hydrocyclone

    4"

    Mud Cleaner

    Mud Cleaner

    10"×1pcs10"×2pc

    Hydroclycolone Qty

    4 pcs

    Desilter Cyclone

    4"×8pcs4"×12pcs

    Supply Pump Model

    TRSB4X3-12J

    Bottom Screen Area

    1.35m22.12m2
    Slurry Pump ModelTRSB4X3-11JSupply PumpTRSB6X5-11J*2TRSB8X6-11J*2
    Mud HopperTRSLH100Slurry PumpTRSB6X5-12JTRSB8X6-12J
    Gross Power44kWJet Mud MixerTRSLH150-35(37KW)TRSLH150-35(45KW)
    Total Volume5m3Mud AgitatorTRJBQ7.5TRJBQ7.5
    Dimension4000×2360×2940mmGross Power130kW184kW
    Weight5500kgTotal Volume15m330m3
    Dimension10000×2360×4228mm12100×2630×4438mm
    Weight17000kg20000kg

    We are a first class authorized company of Sinopec, and member of CCPIT and CCOIC. We have strong technical force, advanced processing equipment, and engage in technicalexchanges and cooperation with foreign companies and Universities. Our main products are solid control equipment, PDC drill bit, cementing equipment, OCTG, drilling equipment,oil mining equipment and well control system.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
