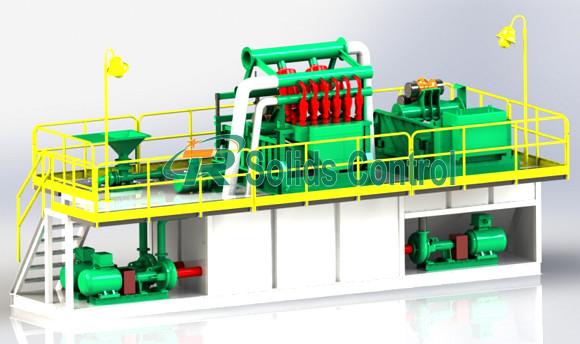

    Horizontal Directional 200 GPM Trenchless Drilling Mud System

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRHDD-200
    Certification : API Certificate, ISO Certified
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 100 Set / Month
    Delivery Time : 25 days after receiving 30% deposit
    • Product Details
    • Company Profile

    Horizontal Directional 200 GPM Trenchless Drilling Mud System

    200 GPM Trenchless HDD Mud Recycling System​


    Introduction


    Horizontal directional drilling short name is HDD. This technology has wide application in oil and gas pipelines crossing the rivers, lakes, highway, railway hub and other obstacles and important area. HDD site is all in large no-excavation area and do not allow to make mud discharge randomly, so it is very important to equip with mud recovery system. TR Solids Control is a professional manufacture in designing and customizing HDD mud recovery system.


    We can also design and manufacture of directional drilling purification system, shield mud purification system, gas layer exploration mud purification system, the mining mud purification system, channel dredging mud purification system, such as series of projects.


    Main Function of HDD mud recovery system

    1. You can recycle the used mud, and reduce construction costs.
    2. Reduce the preparation work of mud, also reduce labor cost.
    3. Reduce environmental pollution, and be friendly.
    4. Mud tanks flexible options.

    Technical Specifications of TR HDD Mud Recovery System


    ModelTRHDD-200ModelTRHDD-500TRHDD-1000
    Capacity200GPM (50m3 /h)Capacity500GPM (120m3 /h)1000GPM (240m3 /h)
    Shale ShakerTRZS752SShale ShakerTRZS703/TRZS585TRZS703/TRZS585

    Upper Screen Area

    0.875m2

    Screen Area

    2.7m22X2.7m2

    Upper Screen Area

    1.35m2

    Mud Cleaner

    TRQJ250X1S-100X8NTRQJ250X2S-100X12N

    Hydrocyclone

    4"

    Mud Cleaner

    Mud Cleaner

    10"×1pcs10"×2pc

    Hydroclycolone Qty

    4 pcs

    Desilter Cyclone

    4"×8pcs4"×12pcs

    Supply Pump Model

    TRSB4X3-12J

    Bottom Screen Area

    1.35m22.12m2
    Slurry Pump ModelTRSB4X3-11JSupply PumpTRSB6X5-11J*2TRSB8X6-11J*2
    Mud HopperTRSLH100Slurry PumpTRSB6X5-12JTRSB8X6-12J
    Gross Power44kWJet Mud MixerTRSLH150-35(37KW)TRSLH150-35(45KW)
    Total Volume5m3Mud AgitatorTRJBQ7.5TRJBQ7.5
    Dimension4000×2360×2940mmGross Power130kW184kW
    Weight5500kgTotal Volume15m330m3
    Dimension10000×2360×4228mm12100×2630×4438mm
    Weight17000kg20000kg
    We have explored the international market, provided high-quality products, competitive prices and excellentservice in recent years. Our products are exported to Europe, America, theMiddle East, South America, Southeast Asia, Australia etc, obtained the customer affirmation and the faith.

    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


    Company Tenet
    Customer's satisfaction is the highest pursuit of TR Solids Control.
