500 GPM Drilling Fluid Purification System with Compact Size

Brief Introduction

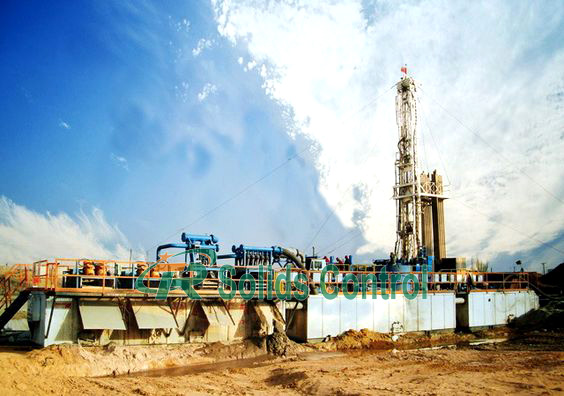

Oil Drilling Mud System may contain shale shaker, Vacuum Degasser, Mud Desander, desilter, Mud Cleaner, Decanter Centrifuge, centrifugal pump, Drilling Mud Agitator, Mud Gun, Jet Mud Mixer, poor boy degasser, Mud Tank, etc. TR solids control system will suit rig max drilling depth from 2000m to 9000m, as well as the offshore rig or jack-up platform drilling. We promise clients optimal solution with a cost-efficient budget.

TR independently design and manufacture of the mud solid control system has been widely adapted to the ZJ20 system, ZJ30 system, ZJ40 system,ZJ50 system, use ZJ70 drilling solid control system. According to the "Petroleum Healthy Environmental Protection and Environmental Management System" to design and manufacturereasonable reflects TR people's thought idea.

Operating Principle of Solids control system:

Solids control system assembles five-stage solids control equipment, security equipment and other auxiliary equipment via manifolds according to their separation effects in an orderly way. Mud tank serves as a carrier and drilling fluid carrying cuttings directly enters shale shaker through a diverter. The shale shaker separates big cuttings particles from drilling fluid and the treated drilling fluid containing smaller particles passes through screens and enters the mud tank. If mud contains bubbles, self-priming device of vacuum degasser can suction the mud into the degasser for mud-gas separation. The degassed mud is then fed to desander and desilter via centrifugal pump. Solid-liquid separation of mud is continued in cyclones by using the principle of centrifugal sedimentation. Solid particles within 44~74μm separated by desander and those within 15~44μm separated by desilter are discharged and the mud enters the mud tank under centrifuge through manifolds connecting with cyclones for the last stage separation. Submersible slurry pump (screw pump) feeds mud to decanter centrifuge and solids particles over 2~15μm in diameter are separated by the centrifuge. Each mud tank is connected by using built-in pipes. During drilling operations, drilling fluids of different separation effects can be pumped for use as needed. Jet mud mixer on mud tank can prepare mud as needed.

Technical Specification of TR Oil Drilling Mud System

TR Solids Control manufactures all solids control equipment. Mud tanks are also designed and manufactured to compose whole mud systems to meet the demands of drilling rigs from 250HP to 3000HP. As a solids control manufacturer owns API,CE,IEC ,ISO certificate.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.

Xi'An TianRui Petroleum Machinery Equipment Co.,Ltd. (For short: TR Solids Control) is a professional manufacturer of solids control equipment and mud recovery system, located in Xi'an City, China. Since 2010, TR Solids Control focused on the development and production of various types of solids control equipment & system. Our R&D personnel are composed of rich experienced crew who have long-time work on oil drilling mechanical design, so we supply professional drilling solids control equipment with the enterprise spirit of continuously improvement and constantly innovation.

Our main products include: drilling mud shale shaker, decanter centrifuge, mud agitator, mud cleaner, desander, desilter, vacuum degasser, submersible slurry pump, centrifugal pump, screw pump, shear pump, jet mud mixer, mud hopper, liquids gas separator, flare ignition device, mud tank. Spare parts like shaker screens, hydrocyclones, impeller, mechanical selas and gear box etc. They are widely used in oil and gas drilling, coal bed methane system, trenchless HDD & tunneling, micro-tunneling, drilling waste management, bored pile construction, etc.

TR Solids Control brings in international advanced technology and imports high precision processing equipment for production, and builds talent training cooperation relations with lots of university in Xi’An city for replenishing new blood continuously to us. We also formed a high-tech modern integrated enterprise with design, manufacture, sales and service. TR Solids Control has our own improved management system, high level professionals and excellent service team. Our production management strictly implements API quality specification requirements, and we have strict regulations to materials procurement, producing and processing , equipment debugging and whole process of equipment ex-factory. We’re fully capable of supplying satisfied products and services timely as per client’s request.

In terms of products quality management, TR Solids Control continuously update our own management level. We passed the international quality management system ISO9001-2015. TR Solids Control pursuits high-quality product and establishes excellent quality management system, this enables us to get the appraoval from clients.

TR Solids Control adheres to the enterprise purpose--Customers’ Satisfaction is the Highest Pursuit of us. Our goal is to create the global famous brand enterprise, and supply excellent and stable drilling fluids recycling purification system and HDD(Horizontal Direction Drilling) mud recycling system to users. Our products are used in Chanceful Oilfield in north of Shaaban, Chang Oilfield, Sinkiang Oilfield and other national drilling company. At the same time we exported our products to almost 40 countries and regions like South America, US, Europe, Egypt, Dubai, Abu Dhabi, Oman, Pakistan, Russia, Australia, Korea, Vietnam, Myanmar, etc.

Our goal is simple: to sell the best equipment at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Solids Control Equipment, to help others achieve their goals.
