    Solids Control Shale Shaker For Drilling Mud Fluids Separator

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRZS584
    Certification : ISO9001
    Supply Ability : 20 Set/Sets per Month
    • Product Details
    • Company Profile

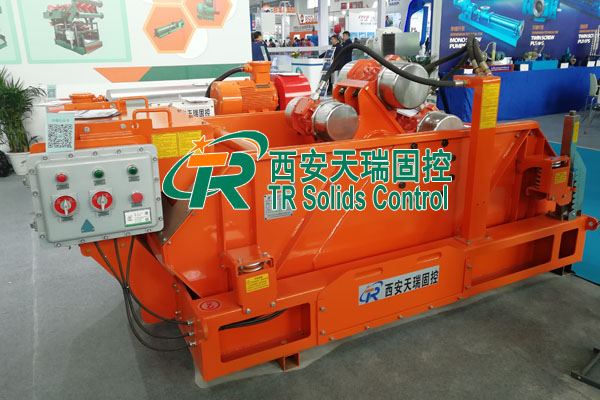

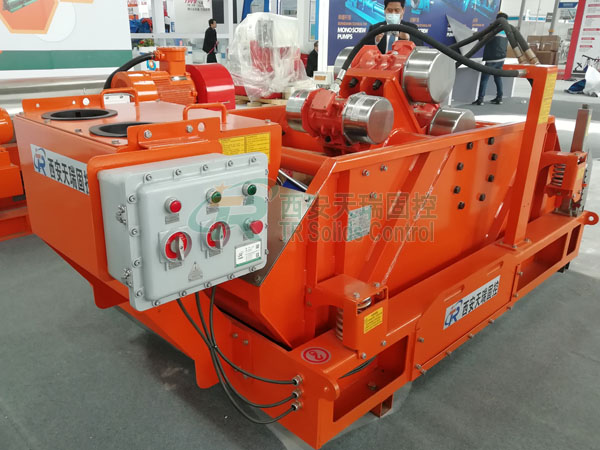

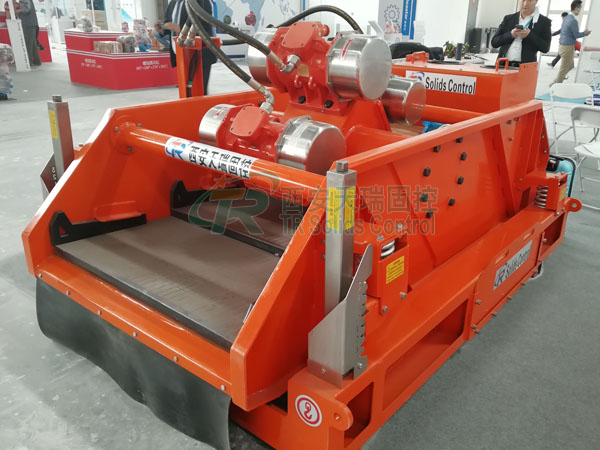

    Solids Control Shale Shaker For Drilling Mud Fluids Separator

    The design of our Shale Shaker was derived from observation and operation of similar products. It contains three of our own patents, including two types of products: the linear and the flat elliptical. This shaker features: high vibration intensity; large screen surface area; adjustable discharge angle during drilling; simple compact structure; reliable, great performance at a competitive price!


    ModelTRZS703TRZS2000TRZS585
    Vibrating ModelLinearLinearLinear
    Motor Power2×1.5KW2×1.72KW2×1.72KW
    Vibrating Strength≤7.0G≤7.5G≤7.5G
    Amplitude6.0~7.2mm6.0~7.2mm
    Capacity527GPM615GPM615GPM
    Deck Adjustment-1°~5°-1°~5°-1°~5°
    Screen of Deck334
    Electric380V/50HZ,460V/60HZ or Customized
    Decibels<85db<85db<85db
    Ex StandardExdIIBt4 / IEC EX/ ATEXExdIIBt4 / IEC EX/ ATEXExdIIBt4 / IEC EX/ ATEX
    Dimension2800X1785X17502800X1600X16902800X1600X1690
    Weight1550kg1850kg1750kg
    RemarksTreating capacity test from mud 1.2g/cm ³density,viscosity45s﹠60mesh screen
